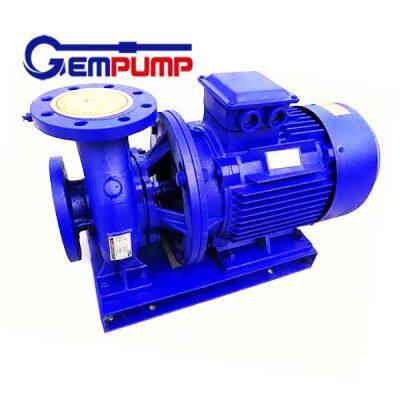

High-Pressure ISW Series Pipe Centrifugal Water Pump
Pump Features:
This product is of horizontal structure, used for conveying clean water and other liquid with similar physical,
and chemical properties to clean water. It is suitable for industrial and urban water supply and drainage,
pressurized water delivery in high-rise buildings, sprinkler irrigation in gardens, pressurized fire fighting,
long-distance transportation, heating ventilation air conditioning circulation, bathroom, and other pressurized cooling,
and heating water circulation and supporting equipment.
Isw series single stage end suction centrifugal pump is an energy-saving pump. The advantage is hydraulic capability is distributed reasonably, wide option for user, conveniently check and repair, the efficiency and throw is up to advanced international level. This pump is suiable for industrial and city water supply, water drainage.
Pump Application
1. Water supply in industry, cities, and high-buildings.
2. Fire fighting pipeline booster.
3. Cold and hot water circulation in air-conditioning.
4. Transport water.
5. Boosting transport in the industrial, circulating system, and all kinds of water supply equipment, boiler, etc.
. Hot and cold water distribution and circuits
. The water supply of houses and buildings
. Fire fighting pressure boosting
. Garden sprinkler
. For all industries where chemically neutral,non-explosive clear liquids without abrasive particles
Pump Advantages
. High hydraulic efficiency
. Low electrical consumption
. Direct assembly on pipes (horizontal or vertical) or on a concrete base
. Low sound levels
. Almost maintenance-free
Pump Operating Limits
. Flow rate up to 1500 m3/h
. Head up to : 160 m
. Max. working pressure: 16 BAR
. Temperature range: <120ºC
. Flanges DN: 20mm to 500mm
Electric Motor
. Standardized with flanges. Coupled to the pump by rigid coupling
. Speed: 1450 & 2900 rpm
. Winding 3-phase ≤3 kW : 230V/50 Hz OR 400V/50 Hz
3-phase ≥4 kW : 400V/50 Hz
. Insulating class: F
. Protection: IP55
SHIJIAZHUANG JIEMU MACHINERY EQUIPMENT CO.,LTD.
China Gempump is one of the leading private indenting firms of China having 10 years of experience in Mining, Fluid Transportation and Fire Emergency Field. It works on design theory of slurry pump,split case pump,multistage pump,magnetic pump,submersible pump and water pump, experimental researches of pump performance wear mechanism and new products developing, and involves in research, design, manufacturing and sales.
FAQ:
Q1: What is your product range?
A:Centrifugal pump includes slurry pump, split case pump, clean water pump, sewage pump, chemical pump, self-priming pump and submersible pump.
Q2: What's your MOQ , payment term and lead time?
A:MOQ for centrifugal pump is 1 set.
Q3: What payment methods are supported?
A: Payment Term: T/T, Western Union, Paypal.
Q4: How long is the lead time?
A:In general 5 working days for slurry pump, 10 working days for water pump.
Q5: What information I need to offer for quotation?
A: Liquid:___ ; Pump Capacity___m3/h ; PH:_____ ; Pump Head: ___m ; Specific of gravity___ ; Voltage ___V ; Frequency ___Hz
Q6: Is OEM parts available ?
A:Yes, please send me the detailed drawing.
>>
