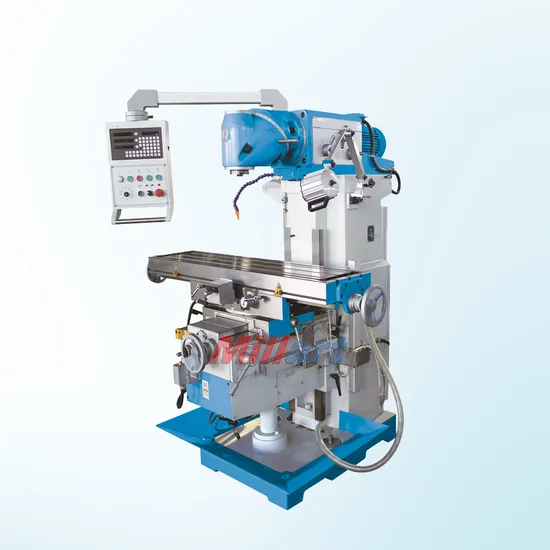

XL6230 XL6230A XL6230b XL6230c Hardened on X, Y, Z Axis Universal Milling Machine, Servo Motor Driven Swivel Head Vertical Milling Machine

Product Description

Product Description
Feature:
1.This milling machine with universal milling head which can swivel 360 degress.
2.Optional rotary table 45°, Multi-angle processing.
3.Table 3 axes are controlled by one servo motor, toque large, energy efficiency, safe and reliable.
4.Hardened on x, y, z axis,rectangular guideway, stable, good rigidity.
Specification:

Specifications	Unit	XL6230	XL6230A	XL6230B	XL6230C
Table size	mm	1270*300	1370*300	1270*300	1370*300
T-slots(NO./width/pitch)	mm	3*14*80
mmMax table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40
Distance between spindle nose and table surface	mm	100-500
Spindle speed range	r.p.m	11 steps 45-1660
Max swivel angle of milling head	-	360
Table feed(X/Y/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	3
Torque of X/Y/Z axis AC servo motor	Nm	10
Overall size	mm	1730*1760*1700	1830*1760*1700	1730*1760*1700	1830*1760*1700

Standard accessories:
Draw bar
Coolant device
Coolant tray
LED machine light
Universal mill head
Spindle brake
Ball screws in all axis
Automatic central lubrication
Mill arbors
Tools
Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
