US$32,000.00-60,000.00
|
1 set
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Automatic Grade
Automatic
Certification
CE, ISO 9001
Inner Diameter of Drilling
1.5-20mm
Drilling Cutting Speed
1-300mm/Min
Max Spindle Rotary Speed
10000rpm
Xyz Axis Motor
3.9/5.9/5.9kw
Machine Diamension
3200*3600*3000mm
Transport Package
Wooden Pallet and Wooden Case
Specification
3200*3600*3000mm
Trademark
JOINT MACHINERY
Product Description
Drilling represents the fundamental cornerstone of machining operations, boasting an unparalleled range of applications across diverse fields. Traditional drilling equipment like bench drills, milling machines, and radial drills often constrain laborers, binding their hands to monotonous, repetitive tasks without assurance of consistent quality. Challenges such as safety, efficiency, and processing limitations have historically plagued manufacturers and operators. However, with the dawn of the CNC era, the advent of CNC deep drilling has revolutionized this landscape. This innovative technology liberates laborers from manual constraints and effectively resolves the bottleneck issues of deep drilling processes. It enables a single drilling operation to achieve the exceptional processing quality normally associated with conventional drilling machines in tasks such as drilling, enlarging, and expanding. Furthermore, it facilitates automatic chip removal, CNC precision positioning, and fully automated processing, setting a new standard in the industry.
| | | |
3 Axis CNC Deep Hole Drilling Machine | 4 Axis Vertical CNC Deep Hole Drilling Machine | Multi-Spindle CNC Deep Hole Drilling Machine | 6 Axis CNC Deep Hole Drilling Machine |
4-Axis Vertical CNC Deep Hole Drilling Machine Introducing a cutting-edge vertical deep hole drilling machine, meticulously designed with a specialized short gun drill to master the intricate small hole processes, particularly in inject pinhole batch production. This engineering marvel offers high precision and speed, complemented by user-friendly operation, significantly reducing the need for manual labor. Its versatility and reliability make it an indispensable asset across various sectors, including medical equipment, aerospace, hydraulic oil pumps, and automotive spare parts manufacturing, ensuring efficiency and excellence in every application.

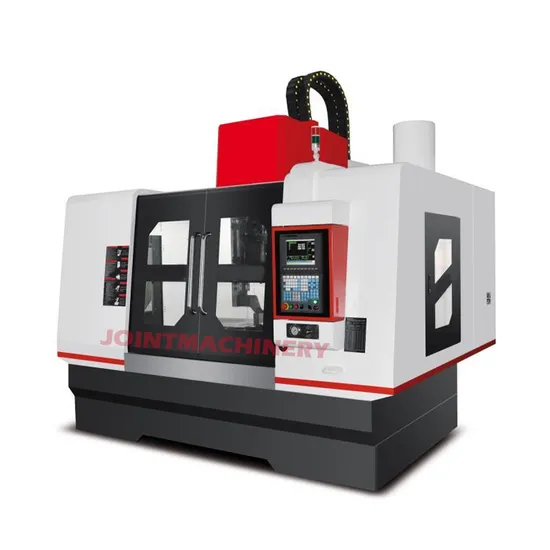

VMD-850 Professional 4 Axis CNC Deep Hole Gun Drilling Machine for Metalwork
Model | Unit | VMD-850 |
Inner diameter of drilling | mm | 1.5-20 |
Max drilling depth | mm | 270 |
Table size | mm | 1000*500 |
X/Y/Z axis travel | mm | 800*500*350 |
Z2 axis travel | mm | 400 |
Drilling cutting speed | m/min | 1-300 |
Spindle taper | | BT40 |
Max spindle rotary speed | rpm | 10000 |
Spindle motor power | kw | 7.5-11 |
X/Y/Z axis motor | kw | 3.9/5.9/5.9 |
Z2 axis motor | kw | 5.9 |
Load weight | kgs | 800 |
Machine weight | kgs | 5500 |
Machine dimension | mm | 3200*3600*3000 |
Shenzhen Joint Machinery Co., Ltd. stands as a beacon of innovation and expertise in the realm of manufacturing and exporting top-tier CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering commitment to quality ensures that our machines not only meet but exceed the highest industry standards. By integrating advanced core technologies from Taiwan and Germany with cutting-edge production equipment and processes, we provide machines that epitomize exceptional performance, precision, stability, and reliability. Our diverse product range has earned us acclaim on a global scale, with exports reaching across Asia, Europe, South America, and North America. The widespread recognition and popularity of our machines among customers are a testament to their superior quality and our dedication to service excellence. By forging enduring partnerships worldwide, we continually create substantial business value and contribute to advancing the machining industry.
>>
