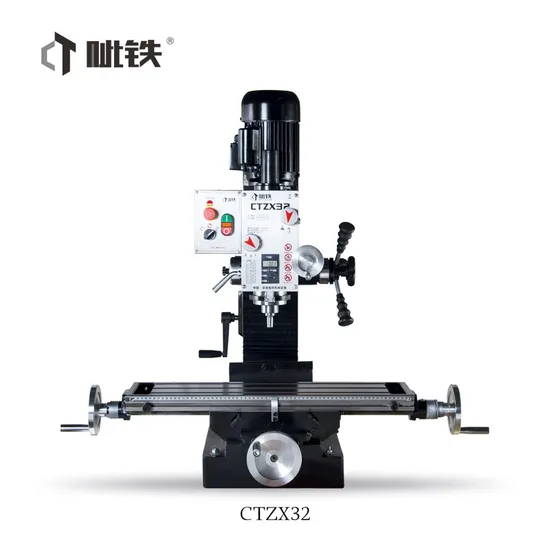

Ctzx32 Mini Drilling Milling Machine with 32mm Capacity From China with Dro

US$1,298.00
1-4 Sets
US$1,240.00
5-9 Sets
US$1,200.00
10+ Sets

Basic Info.

Model NO.
CTZX32
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Capacity
32mm
Max Milling Capacity
63mm
Spindle Travel
85mm
Motor Power
750W
Net Weight
205GS
Transport Package
Standard Wooden Packing
Specification
1000*800*1200mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Packaging & Delivery

Package Size
120.00cm * 82.00cm * 140.00cm
Package Gross Weight
220.000kg

Product Description

Max.Drilling capacity 32mm
Max.milling capacity 63mm
Max.vertical milling capacity 20mm
Table size 700x180mm
T-slots size 14mm
X spindle travel 410mm
Y spindle travel 205mm
Z spindle travel 310mm
Spindle taper MT3
Spindle travel 85mm
Distance from spindle to column guide rail 203mm
Distance from spindle end to table surface 445mm
Spindle box left&right rotation angle 45°
Spindle speeds 95~1420r/min
Motor Power 750W
Net weight/gross weight 205/220Kg
Overall dimensions 1000x800x1200mm
Package Size 720x720x1050mm
