Basic Info.
Model NO.
Wheel HUB Bearings
Certification
ISO9001, TS16949, ISO9006, QS9000, VDA6.1
Product Name
Wheel Hub Bearing
Keywords
Auto Wheel Hub Bearing
Others Name
Automotive Wheel Hub Bearing
Bearing Material
Chrome Steel Gcr15
Noice and Vibration
Z1V1 Z2V2 Z3V3
Bearing Lettering
Laser Marking and Syeel Marking
Rolling Body
Double Ball and Roller Bearing
Precision
P0 P6 P5 ABEC1 ABEC3 ABEC5
Chamfer
Black or Light Chamfer
Quality
High Speed High Precision
Application
for Vehicle Loading and Rotation
Transport Package
Standard Packaging or Customized
Specification
Standard Specification or Customized
Production Capacity
5000000PCS/Month
Product Description

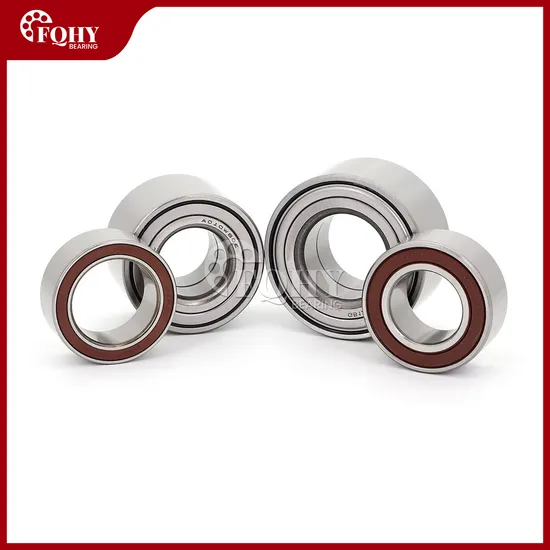

FQHY DAC38700037 DAC458500302 Chrome Steel GCr15 Jeep Hub Bearing
Product Description
Wheel Hub Bearing
Traditional automobile wheel bearings are composed of two sets of tapered roller bearings or ball bearings. The installation, oiling, sealing, and clearance adjustment of the bearings is all carried out on the automobile production line. This structure makes it difficult to assemble in the automobile production plant, high in cost, and poor in reliability. Moreover, when the automobile is maintained at the maintenance point, the bearing needs to be cleaned, oiled, and adjusted.
The hub bearing unit is developed based on standard angular contact ball bearings and tapered roller bearings. It combines two sets of bearings into one, with good assembly performance, clearance adjustment can be omitted, lightweight, compact structure, and high load capacity. Large, unsealed bearings can be filled with grease in advance, omit the external hub seal and avoid maintenance, etc., have been widely used in cars, and there is a trend of gradually expanding their application in trucks.
The main function of hub bearing is to carry weight and provide precise guidance for the rotation of the hub. It can bear both axial load and radial load, which is a very important component.Wheel hub bearings play a vital role in automobile safety, and the design and processing technology, material, sealing device, usage method, and usage conditions of the bearings have different degrees of influence on the bearing life and performance.
Product Parameters
| Product Parameters |
| Product Name | Wheel Hub Bearing |
| Type | Auto Wheel Hub Bearing |
| Weight | Standard Weight |
| Specifications | Standard Size |
| Material | Chrome Steel GCr-15 |
| Ball | G10,G16 |
| Rolling Body | Ball Or Roller |
| Wheel Hub Bearing |
| DAC20420030/29 | DAC36760029/27 | DAC42760040/37 |
| DAC255200206 | DAC37720033 | DAC42770039 |
| DAC25520037 | DAC37720037 | DAC42780040 |
| DAC25520042 | DAC37720237 | DAC42780045 |
| DAC25520043 | DAC37720437 | DAC42800036/34 |
| DAC25550043 | DAC37740437 | DAC42800037 |
| DAC25560032 | DAC37740045 | DAC42800038 |
| DAC255600206/29 | DAC38700037 | DAC42800039 |
| DAC256000206/29 | DAC38700038 | DAC42800342 |
| DAC25720043 | DAC381700037 | DAC42800045 |
| DAC27520045/43 | DAC38710233/30 | DAC42820036 |
| DAC27520050 | DAC38710039 | DAC42820037 |
| DAC27530043 | DAC38720034 | DAC42840036 |
| DAC27600050 | DAC38720236/33 | DAC42840039 |
| DAC28580042 | DAC38720040 | DAC43760043 |
| DAC28580044 | DAC38730040 | DAC43770042/38 |
| DAC28610042 | DAC38740036/33 | DAC43780044 |
| DAC29530037 | DAC38740236/33 | DAC43790041/38 |
| DAC30580042 | DAC38740036 | DAC43790041 |
| DAC30600037 | DAC38740040 | DAC43790045 |
| DAC30600337 | DAC38740050 | DAC43800038 |
| DAC30630042 | DAC39680037 | DAC43800040 |
| DAC30640042 | DAC39680737 | DAC43800050/45 |
| DAC30680045 | DAC39720037 | DAC43820045 |
| DAC32720345 | DAC39740039 | DAC43/45820037 |
| DAC34620037 | DAC39740036/34 | DAC44825037 |
| DAC34640034 | DAC39/41750037 | DAC44840042/40 |
| DAC34640037 | DAC40700043 | DAC45770050/45 |
| DAC34660037 | DAC40720036/33 | DAC45800037 |
| DAC34670037 | DAC40720036 | DAC45800045 |
| DAC35618040 | DAC40720037 | DAC45820042 |
| DAC35620040 | DAC40740036/34 | DAC45830045 |
| DAC35640037 | DAC40740036 | DAC45840039 |
| DAC35650035 | DAC40740040 | DAC45840041/39 |
| DAC35660032 | DAC40740042 | DAC45840042/40 |
| DAC35660033 | DAC40750037 | DAC45840045 |
| DAC35660037 | DAC40750039 | DAC458500302 |
| DAC35670042 | DAC40760033/28 | DAC45850041 |
| DAC35680037 | DAC40760033 | DAC45850541 |
| DAC35680233/30 | DAC40760041/38 | DAC45860039 |
| DAC35720228 | DAC40780040 | DAC45870041/39 |
| DAC35720233/31 | DAC408000302 | DAC45880039 |
| DAC35720033 | DAC40800036/34 | DAC47810053 |
| DAC35720433 | DAC408000381 | DAC47850045 |
| DAC35720034 | DAC40800040 | DAC47880055 |
| DAC35760054 | DAC408402538 | DAC478800575 |
| DAC35770442 | DAC408406397 | DAC48860042/40 |
| DAC35800047 | DAC401080032/17 | DAC48890044 |
| DAC36680033 | DAC41680040/35 | DAC48900042 |
| DAC36720034 | DAC42720038/35 | DAC49840048 |
| DAC42760038/35 | DAC42720038 | DAC49880046 |
| DAC42760039 | DAC42750037 | DAC49900045 |
| DAC52910040 | DAC42760033 | DAC51910044 |
| DAC54960051 | DAC51960050 | |
FAQ
Q1: What the MOQ of your company?
Our MOQ is normally 100pcs, anyway, lower MOQ is also acceptable with a little higher cost, sure the more you purchase the cheaper cost you could get.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: Could you supply a sample for free?
Yes, we can supply samples for free but the shipping cost is paid.
Q4: Does your factory have any certificates?
Yes, we have ISO 9001:2008, IQNET, and SGS. If you want others like CE, we can do it for you.
Q5: Is your company a factory or a Trade Company?
We have our own factory
Q6: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, ceramic, and plastic materials.
Q7: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q8: Could you tell me the payment terms your company can accept?
T/T.Western Union, PayPal
Q9: Could you tell me the delivery time of your doors?
If stock, in 7 days or based on your order quantity
Q10: Can you give me a discount?
Yes, you can, contact me immediately to get more discounts.
>>
