High Qualified Effect Granite Hualong Machinery Marble Block Cutting Machine with Cheap Price

Product Description

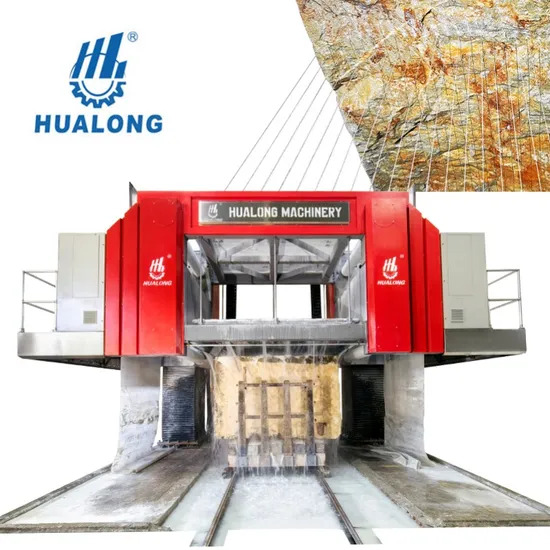

Super Thin Multi Wire Saw Machine HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:
Advantage
1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones 2) Emission Reduction of Stone Powder: over 90%
3) Noise reduction - No vibration, reduce noise over 40 dB
4) Ultra thin slabs below 10mm can be produced
5) High precision prevent wire marks and improves the slab flatness by 50%
6) Space saving - reduce equipment footprint by more than 30%
7) The main motor adopts 4 sets of 60KW servo motors with direct drivestructure, large torque, fast forward and reverse speed regulation, andaccurate and controllable operation process.
8) Power saving: The servo control system is used to reduce the powerconsumption by two-thirds than the traditional one.
9) M-shaped guide wheel layout to improve the smoothness of thecutting line.
10)The line storage capacity of the whole machine is 150,000 meters,which greatly reduces the line changing time.

Wire roller 30 km or 50km super thin diamond wire can be stored per roller. Each 800m to 1000m wire is released for cutting and cutting...passivated, and then another length of 800m to 1000m new wire is released for cutting...

Console Visual human-computer interactive operating system, clear at a glance, easy to use

Electric Control Cabinet INOVANCE advanced multi-machine drive inverters and servo system complete solution are adopted to secure smooth and reliable performance

Technichal Data for HLMW-100/150
Diameter of diamond wire	mm	0.3 - 0.8
Max. volume of wire stored	km	30 / 50
Operating line speed	m/s	25 - 40
Thickness of slabs cutted	mm	5 - 30
Max. number of cutting pieces	piece	100 / 150
Max. processable size of block	mm	3500x2100x2100
Max. spindle speed	rpm/min	3000
Main motor power	kw	60
Gross power	kw	310
Dimensions (LxWxH)	mm	7800x4800x6580

Super Fine Multi Wire Saw Machine
* Output: 90 pcs/m for 1.08cm thick slabs * Rate of Output: 98.2%
* Emission Reduction of Stone Powder: 90%
* More smooth surface cutted
HLMW-100/150 Super Thin Multi Wire Saw Debut @ 2024 Xiamen International Stone Fair
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
