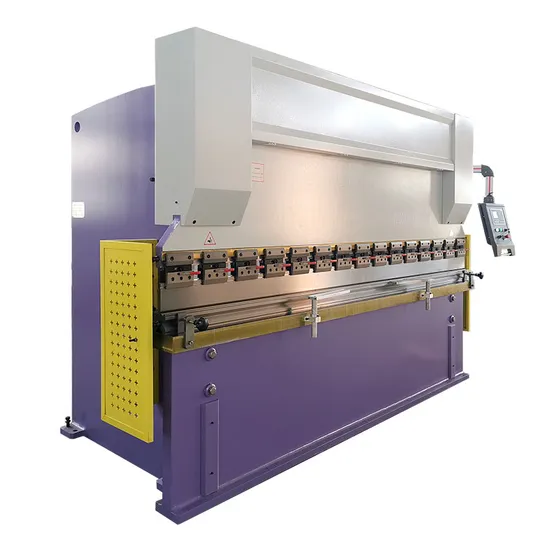

Hydraulic Press Brake WC67Y-125/3200 sheet metal press brake machine

Product Description

Product Description Hydraulic Press Brake WC67Y-125/3200:
The whole structure of Press Brake:
-Totally European design, streamlined looking, Monoblock, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
-PRESS BRAKE is Equipped with the Estun user-friendly interface, the E21 provides all main press brake functionality.
-Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.
1. Hydraulic system
-Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Rexroth, Germany.
-All pipes, flange and joint with vibrations proof and leakage proof design and setting.
-All seals in cylinder is DZ from Taiwan, the most famous brand, good quality and high performance.
-Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
-The hydraulic system is made in compliance with current regulations.
2. Electrical system
-Electrical Cabinet under the standard of IP55, Electrical under international CE Standard, safe and reliable, strong anti interference capability.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
-Front Side and back safety guards, Foot pedal conforming to CE regulation.
3. Synchro control system
-Patented hydro-mechanical system for exact parallelism and a high repeat accuracy.
-The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
-Adopt steel torsion bar synchro system, simple in structure and high in accuracy, ensures the parallelism between beams is used for the synchronism.
4. Mould and dies
-The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation.
-Upper and buttom die can be sectioned according to customer's requirement.
5. Backgauge
-Back gauge fingers with two gauging steps used one for short and the other for long bending depths.
-Back Gauge positioning fingers move along linear bearings with ±0.05 mm. positioning tolerance.
6. E21 NC Controller
-Backgauge and block control
-Control for AC motors, frequency inverter
-Intelligent positioning
-Stock counter
-Holding/decompression time setting
-Program memory of up to 40 programs, up to 25 steps per program
-One side positioning
-Retract function
-One key backup/restore of parameters
-mm/inch
-Chinese/English
Main Specification:

WC67Y-125/3200	Unit	Value
Nominal pressure	KN	1250
Length of working table	mm	3200
Distance between uprights	mm	2650
Throat depth	mm	320
storke	mm	120
Open height	mm	380
Motor power	KW	7.5
Dimension	mm	3500*1500*2350
Weight	kg	6800

Detailed Photos

Standard accessories

Gear pump

E21 NC controller

Hydraulic system

Sealing rings

Ball screw and line guide

Casting connector

Hydro-cylinder

Variable frequency drives

Company Profile
FAQ Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
