The full name of wet pan mill is wet type pan mill. According to the different operation methods, it is divided into gold mill, amalgamation mill, iron mill, and electric mill. While according to the different structure, it is divided into wheel mill, double roller mill, and three roller mill. Wet pan mills are developed on the basis of ancient stone mills through modern improvements. It is used for the grinding operations of various ferrous metals, non ferrous metals and non-metallic minerals, as well as the grinding, separation and processing operations of rare and precious metals gold and silver. It is a grinding equipment favored by the majority of small and medium sized concentrators.
Performance Characteristics:
1. * High Quality Motor：The motor is the core component of the wet pan mill, and the service life of the wet pan mill determines by the high-quality motor.
2. * Strictly Control The Casting Quality
3. * Good Quality Of Grinding Roller
4. * Wear-resisting Improved by more than 130%.5. * WZ roller bearing with Military quality first-class performance, easy maintenance, and high efficiency.
WORKING PRINCIPLE
The gold wet pan mill is mainly composed of drive unit, frame, water basin, roller, grinding disc and other components. It adopts wheel-driven grinding work mode. first, the electric motor transmits the power to the reducer, and the torque is driven by the reducer through the large vertical shaft. It is transmitted to the upper horizontal axis, and then transmitted to the roller through the tie rods installed at both ends of the horizontal axis, so that the roller generates driving force and rotates counterclockwise along the horizontal axis of the horizontal axis; the roller can surround the wet mill when working. The large vertical shaft revolves and can rotate around the central axis of the grinding wheel, while the grinding disc is fixed. The added ore materials are subjected to the squeezing force from the weight of the grinding wheel in the mill. The huge friction force generated by the grinding wheel and the grinding plate during the revolution and rotation of the grinding wheel is thoroughly squeezed, kneaded, and ground.
PRODUCT PARAMETERS
Model
| Specification
| Feeding Size （cm）
| Power （kw）
| Spinning Speed （r∕min）
| Weight（t）
|
1600A
| 1600×400×200×500±20
| ≤25
| 6-30
| 20-22
| 14.5
|
1500A
| 1500×350×200×460±20
| ≤25
| 6-22
| 20-22
| 13.3
|
1500B
| 1500×350×150×460±20
| ≤25
| 6-22
| 20-22
| 12.3
|
1500C
| 1500×300×150×420±20
| ≤25
| 6-22
| 20-22
| 11.3
|
1400A
| 1400×250×150×350±20
| ≤25
| 6-18.5
| 16-18
| 8.5
|
1400B
| 1400×250×150×350±20
| ≤25
| 6-18.5
| 21-23
| 8.5
|
1350A
| 1350×250×150×350±20
| ≤25
| 6-18.5
| 16-18
| 8
|
1350B
| 1350×250×150×350±20
| ≤25
| 6-18.5
| 21-23
| 8
|
1300A
| 1300×250×150×350±20
| ≤25
| 6-15
| 16-18
| 7.5
|
1300B
| 1300×250×150×350±20
| ≤25
| 4-15
| 21-23
| 7.5
|
1200A
| 1200×220×80×270±20
| ≤25
| 6-7.5
| 17-19
| 7.5
|
1200B
| 1200×200×80×250±20
| ≤25
| 6-7.5
| 23-25
| 7.5
|
1100A
| 1100×220×80×250±20
| ≤25
| 4-7.5
| 17-19
| 5
|
1100B
| 1100×220×80×250±20
| ≤25
| 4-7.5
| 23-25
| 5
|
1000
| 1000×200×80×250±20
| ≤25
| 4-7.5
| 13-15
| 4.5
|

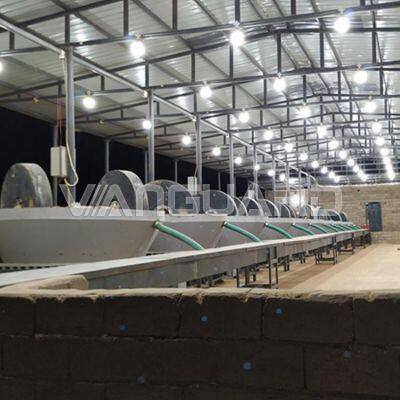

CUSTOMER CASES
Packaging and Shipping
view more >>Recommended by seller
Limestone Vertical Powder Calcium Quartz Stone Dolomite Ultrafine Grinding Mill$5,800.00 - $84,000.00 / set1.0 set
Fine Powder Grinding Equipment Gypsum Dolomite Talc Limestone Ball Mill Crusher Price$6,800.00 - $74,000.00 / set1.0 set
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete grinding plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
