Prestressed Concrete Hollow Core Slab/ Board Making Machine for Use Building Houses

Product Description

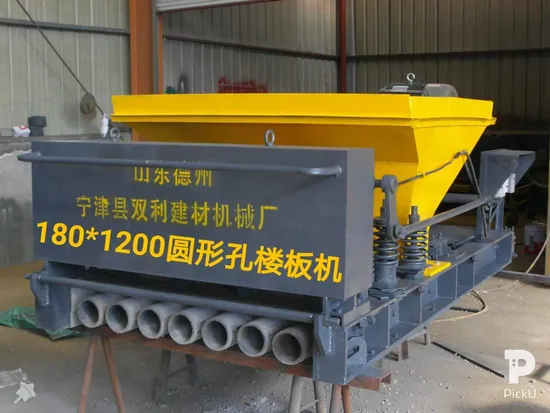

Precast Hollow Core Concrete Slab Mould Machine
Machine advantage
1. Need 2-3 workers, reasonable design
2. Easy to operate and maintain
3. Durable for vulnerable parts, low produce cost
Hollow core slab usage
This kind of slab is the best and economical choice for the factory to produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.

Machine specifications (Your slab sizes can be customized)

Model	Motor Power	Vibrator Power	Dimension (L*W*H)	Weight (kg)	Molding Speed(m/min)	Holes (pcs)	Hole Diameter(mm)
120*600	5.5kw	3kw	2100*850*750	1050	1.2-1.4	5	Ø76
120*600*2	7.5kw	3kw	2400*1550*900	1700	1.2-1.4	10	Ø76
50*500	3kw	0.8kw	1800*750*650	700	1.2-1.4	8	Ø25
50/80*500	4kw	1.5kw	2030*730*660	930	1.2-1.4	7	Ø25 (Ø42)
100*600	4kw	2.2kw	2100*850*730	975	1.2-1.4	6	Ø60
90*600	4kw	2.2kw	2100*840*730	955	1.2-1.4	6	Ø50
60/80*500	4kw	1.5kw	2030*830*660	910	1.2-1.4	7	25 (Ø42)
120*900	7.5kw	3kw	2500*1300*900	1580	1.2-1.4	8	Ø76
120*1200	7.5kw	3kw	2500*1700*900	1650	1.2-1.4	11	Ø76
180*600	7.5kw	3kw	2300*1100*950	1290	1.2-1.4	3	Ø130

Production Process of the precast prestressed concrete slabs production line-

Strengths of the precast prestressed concrete slabs-
1.Advanced and matured technology of the precast prestressed concrete slab production line
2.Fast molding speed of the precast prestressed concrete slab machine:1.2-1.4m/min
3.Low labor strength and high efficiency of the precast prestressed concrete slab production line
4.Long service life for the precast prestressed concrete slab machines
5.Strong bearing of the precast prestressed concrete slabs6.Only 3~4 workers needed for the precast prestressed concrete slab production
The precast prestressed concrete hollow core slabs can be used as the floor of the buildings. They are stout with steels inside. With smooth surface, solid construction, high strength and precise dimension, the precast prestressed hollow core slab meets all the national specification requirements.
Available Models of the Precast Prestressed Concrete Slabs Machine-
Load and span of precast prestressed concrete slabs-
Company information
Shuangli Building Materials Machinery Factory was founded in 2005.The factory is located at Ningjin County, Shandong Province,China
We specialize in the production of precast concrete molding machine,including Concrete hollow cored slab making machine, concrete lintel machine, concrete purlin machine, concrete column making machine, lightweight wall panel machine, and concrete pipe making machine, concrete mixing machine,concrete batching plant machine,etc.The thickness of the product can be varied from 30mm to 380mm, widest 1.2m, longest 18m.All our products can meet the country's large-scale construction projects and civil needs

---
