Stainless Steel Lubricating Grease Product Type Colloid Mill

Product Description

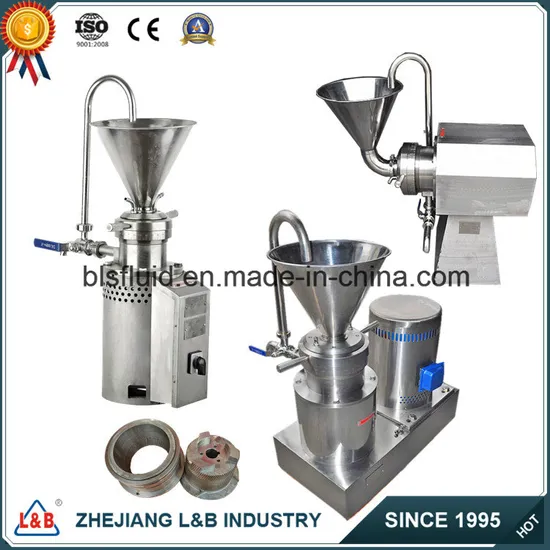

L&B Lubricating Grease Product Type Colloid Mill
PRINCIPLE:
The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied force, grinding is finished depending on the relative movement of tooth-form slope, one of them rotates at high speed, while the other stays still to make materials that passing between tooth-form slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them under complex forces such as high-frequency shake, high-speed vortex and others at the same time, so as to achieve the effect of fine and super micro.

Application:
JM series colloidal mill is a new-type equipment of wet type super micro grain processing, suitable for the homogenization, emulsification, separation, smash and milling of various emulsions. It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.), pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze, nanometer material, etc.
Main technical parameters of Stainless Steel Split-Case Liquid Colloid Mill:

Model	Emulsified size (um)	Output T/h	Millstone Dim(mm)	Cooling water pipe (mm)	Outlet Dim (mm)	Inlet Dim (mm)	Speed (rpm)	Power (kw)
JML-50	2-40	0.01-0.1	50	10	20	30	2800	1.5(220V)
JML-50	2-40	0.01-0.1	50	10	20	30	2800	1.1(380V)
JML-65	2-40	0.02-0.5	65	10	20	30	2800	1.5
JMF-65	2-40	0.02-0.5	65	10	20	30	2800	2.2
JMW-80	2-40	0.3-1	80	12	25	48	2800	3
JML-80	2-40	0.3-1	80	12	25	48	2800	3
JMF-80	2-40	0.3-1	80	12	25	48	2800	4
JMW-100	2-40	0.5-2	100	12	25	66	2800	5.5
JML-100	2-40	0.5-2	100	12	25	66	2800	5.5
JMF-100	2-40	0.5-2	100	12	25	66	2800	5.5/7.5
JMW-120	2-40	0.5-3	120	12	32	66	2800	7.5
JML-120	2-40	0.5-3	120	12	32	66	2800	7.5
JMF-120	2-40	0.5-3	120	12	32	66	2800	7.5
JMW-140	2-40	0.5-4	140	12	32	66	2800	7.5
JML-140	2-40	0.5-4	140	12	32	66	2800	7.5
JMF-140	2-40	0.5-4	140	12	32	66	2800	7.5/11
JMF-180	2-40	1.0-7	180	12	38	100	2800	11/15
JMF-200	2-40	1.0-10	200	12	38	100	2800	15/18.5
Remark: W---horizontal type L---vertical type F---fraction type

Patent:
The colloid mill in Our factory has been applied all new technology, which has won national invention patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.

Warranty:
1. Since the acquisition date, the mechanical seal within three-months warranty, and other parts with 12-month warranty under normal circumstances.
2. Beyond the time limit, a paid maintenance service is provided for life. Normal wear is not included.
3.Under warranty,no free repair in any circumstances below:
a. No purchase vouchers(Invoice or Receipt)
b. Damage caused by disassembling or modification
c. Due to the careless error use or improper use man-made damage
d. Under the condition of not usually use(e.g, long time used in harsh place) caused by the fault or damage
e. Product packaging is not complete, the exterior pollution for use
More details
Package and delivery
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our service

Please contact our After-sales service department in time within 30days after you received the cargo.
Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time)
Process	Please provide the copy of Sales Contract and describe the problems appeared.
Problems confirmation:
Slight problem:	Please send the proof to our After-Sales Department, we will reply within two days.
Serious problem:
a	We will dispatch our Quality and Problems Appraisers to make a confirmation.
b	Have a negotiation of the compensation and sign agreements
c	Our After-Sales Department will perform the duties as the agreements

---
