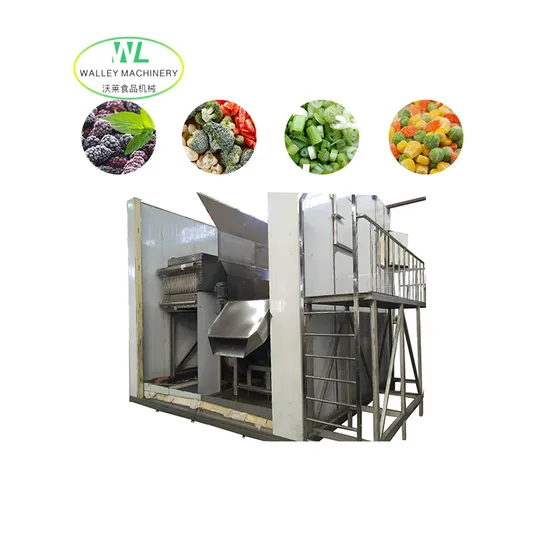

Customizing Granular Fluidized Quick Freezing

US$103,880.00
1-2 set
US$79,900.00
3+ set

Basic Info.

Model NO.
SLD
Type
Quick Freezer
Voltage
380V
Power
57kw
Customized
Customized
Certification
CE,SGS
Application
Fruit Vegetable
Usage
Commercial Usage
Material
Stainless Steel 304
Name
Quick Freeze Machine
Transport Package
Blue Iron Sheet or Wooden Case
Specification
10200x4400x3800
Trademark
Walley
Origin
Zhejiang Shaoxing
HS Code
8418699090
Production Capacity
90sets/Year

Packaging & Delivery

Package Size
1020.00cm * 440.00cm * 380.00cm
Package Gross Weight
5000.000kg

Product Description

Summary:
SLD flidized quick freezer is a new product developed by our company,combining the lasest technology of same products from
Sweden,America and Canana.It is practical and efficient,realizing a real fluidized IQF effect.
IQF Tunnel Quick Freezing Machine Working principle:
The best equipment for quick freezing all kinds of fruit&vegetable and some of the seafood.
Adopts the two stage belting structure---fristly, quick-cooling step. Secondly, deep-freezing step. Independently speed control system, and the speed of the two meshbelts can be changed infinitely.
1.Quick-cooling stage---the food particles are to be quick cooled after entering into the blast room. The surface of the particles would frozen and reach the temperature of 0 C. meanwhile, with the help of the striking chain, the particles would neither stick together nor sticke on the stainless steel meshbelt.
2.Deep-freezing stage---the food is to be moved on a stainless steel meshbelt, the foodstuff layer loosens with the increasing of the airflow. Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspace among the foodstuff particles, that is the way the fluidized bed come into being.
Detailed pictures:
