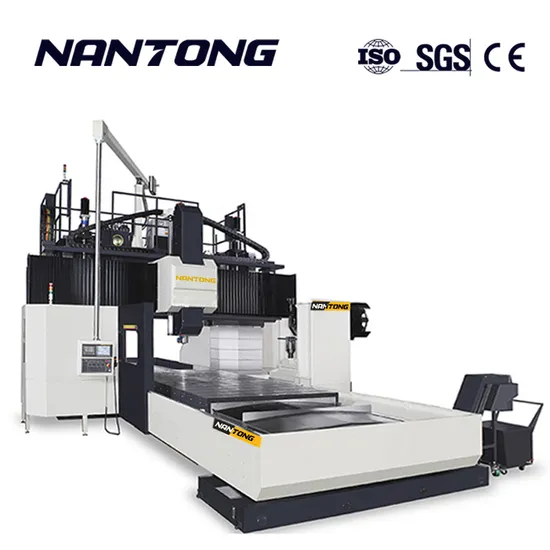

Fashion CNC Non-Conventional Tools CNC/Mnc Machining Center Lathe Gantry Vertical Milling Machine

Product Description

Machine Parameters

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.

Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Welcome your inquiry!

---
