Occ Pulp Making D Type Hydraulic Hydrapulper and Drum Pulper for Paper Mills

Product Description

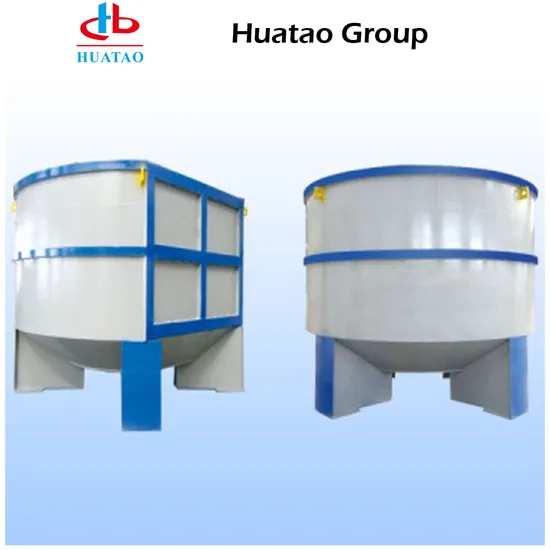

D Type Hydraulic Pulper / Hydrapulper / Drum Pulper /Hydrapurge for Paper Pulp Making
Product Description
1. D-type hydraulic pulper is mainly used to degrade pulp board, waste paper, and broken paper, it is a new energy-efficient vertical hydraulic pulper.
2. The rotor of the center position, so that the waste paper could touch the rotor more quickly, and the frequency is higher.
3. The traditional water power pulper produces an unimpeded hydro cyclone, and waste paper moves to the center rotor But from the entrance according to the helix track. D series water power pulper changed the way it flows, and make the paper touch rotor quickly, thus it shorten the time to crush the paper and improved production capacity at the same time.
Hydrapulper
Used in the paper industry for breaking pulp sheets and breaking waste paper.
This equipment is fitted with P.S. Vokes rotor, which can strengthen
hydraulic cycle and fiber defiberizing and also perform continuous breaking with lower energy consumption.
Hydrapurge/ Turbo Separator/ Impurity Separator/ Fiber Separator for Waste Paper Pulping
1. Used for treating light impurities and tailing pulp in coarse screen section.
2. The main body is an inverse conical design, concave top structure, which can form a strong vortex, forming a low-pressure area in the top center and getting the light impurities and discharging them outside effectively.
3. Centrifugal force pushes heavy contaminants into a tapered reject channel the periphery of the extraction plate, then discharge out of the
machine continuously.
Drum Pulper
Drum pulper is used for disintegrating continuously and coarse screening under a high concentration of waste paper raw materials (14%-22%). Drum pulper is a product that incorporates pulping and screening functions and is particularly suitable for pulping unsorted waste paper raw materials.
Used for mild breaking to waste paper; Single crushing and screening; Pulping density reached 14%-18%; Does not damage the fiber.
D Type Pulper / D Hydrapulper ApplicationUsed in the paper and pulp industry for breaking waste paper and wet-strength paper. This equipment is fitted with P.S. Vokes rotor,which can strengthen the hydraulic cycle and fiber defiberizing and also perform continuous breaking with lower energy consumption
High Density / Consistency Hydrapulper It is suitable for waste paper slurry consistency of 10-18% and Volume of 0-50m3. This Hydrapulper is to separate fiber, purification of the thick liquid material, and select thickly Pulping Equipment, can be continuous or intermittent treated with various different pulp, semi-chemical pulp, pulp board (meal), goods wasted paper, and so on.
Product Parameters

Type			HT-23	HT-24	HT-25	HT-26	HT-27	HT-28	HT-29	HT-30	HT-31	HT-32
Nominal volume: m3			5	10	15	20	25	30	35	40	45	50
Capacity of product : t/d	ONP & LOCC	Φ6 - Φ10	25-35	45-60	65-80	85-100	110-130	130-150	150-170	170-190	190-220	220-250
		Φ10 - Φ16	35-50	60-80	80-100	100-130	130-150	150-170	170-190	190-210	220-250	250-280
	AOCC	Φ6 - Φ10	15-25	30-40	45-60	60-75	80-95	95-110	110-125	125-140	140-160	160-190
		Φ10 - Φ16	25-35	40-50	60-75	75-90	95-110	110-130	125-150	140-160	160-180	190-220
	Chemical wood pulp	Intermittent type	13-18	25-30	40-50	50-60	65-85	80-100	95-120	110-135	125-150	140-170
Power of motor: kw			55	110	160	185	220	250	280	315	355	4000
