3ton 5ton 10ton Diesel LPG Lithium Lead Acid Battery Electric Warehouse Hand Forklift Pallet Stacker Truck Wheel Loader Fork Lift Parts Factory Direct Price

Product Description

3ton 5ton 10ton Diesel LPG Lithium Lead Acid Battery Electric Warehouse Hand Forklift Pallet Stacker Truck Wheel Loader Fork Lift Parts Factory Direct Price

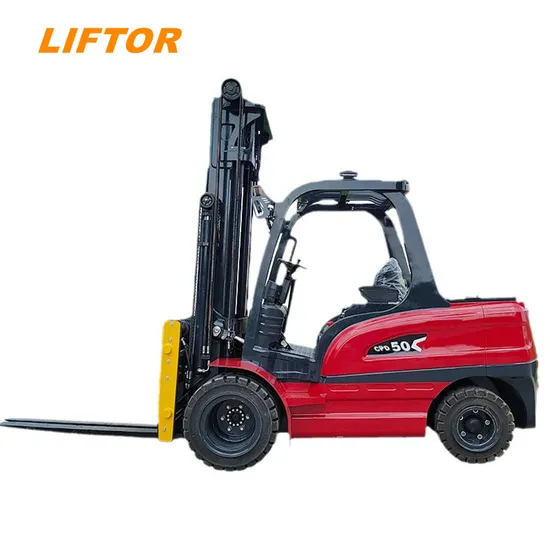

LIFTOR electric forklifts provide reliable, energy-efficient, and eco-friendly material handling solutions. Engineered for durability and high performance, they ensure smooth, safe, and precise operation across warehouses, factories, and logistics centers, enhancing productivity and operational efficiency.
Feature 1. Drive motor, controller and pump structure are well organized. Easy for maintenance.
2. Imported Curtis controller ensuring better performance and less maintenance.
3. Vertical drive motor without brush is for easy maintenance;
4. Electric power steering (EPS) improve work efficiency.
5. Imported ZF gearbox for better performance and longer service lifer.
6. Ergonomic design seat and smooth operation control levels offer comfortable driving experience.
7. Wide-view mast with dual cylinder lift for more stable lifting and protection.
8. Curtis hour meter.
9. Side-removable battery&side shifter as selected option.
Product Parameters

Feature	1.1	Model No.		CPD15	CPD20	CPD25	CPD30
	1.4	Power type		Full-electric	Full-electric	Full-electric	Full-electric
	1.5	Operation type		seated type	seated type	seated type	seated type
	1.6	Load capacity	Q(t)	1500	2000	2500	3000
	1.7	Load center	C(mm)	500	500	500	500
	1.8	Front overhang	X(mm)	447	447	495	495
	1.9	wheelbase	Y(mm)	1450	1450	1600	1600
Total weight	2.1	Total weight(including battery)	kg	2850	3260	4210	4410
Wheel	3.1	Tire type		solid tire	solid tire	solid tire	solid tire
	3.2	Front wheel		6.50-10	6.50-10	23X9-10	23X9-10
	3.3	Rear wheel		5.00-8	5.00-8	18X7-8	18X7-8
	3.4	Front wheel tread	b10(mm)	910	910	970	970
	3.5	Rear wheel tread	b11(mm)	930	930	950	950
Size	4.1	Height-mast lowered	h1(mm)	2095	2095	2095	2095
	4.2	Free-lifting height	h2(mm)	80	80	80	80
	4.3	Lifting height	h3(mm)	3000	3000	3000	3000
	4.4	Fork height when fork lifting	h4(mm)	4110	4110	4110	4110
	4.5	Overhead guards height	h14(mm)	2190	2190	2185	2185
	4.6	Fork height when mast retracts	h13(mm)	40	40	45	45
	4.7	Tilt angle (front/rear)	°	6/10	6/10	6/12	6/12
	4.9	Overall length	l2(mm)	2330	2330	2529	2529
	4.1	Overall width	b1(mm)	1105	1105	1160	1160
	4.11	Fork size	s/e/l(mm)	35/100/1070	40/122/1070	40/122/1070	45/125/1070
	4.12	Fork adjustment size	b5(mm)	244-1042	244-1042	244-1020	244-1020
	4.13	Min ground clearence	m2(mm)	130	130	130	130
	4.14	Stacking channel width,1000×1200 pallet(1200 span fork placement)	Ast(mm)	4429	4429	4686	4286
	4.15	Stacking channel width,1000×1200 pallet(1000 placed along fork)	Ast(mm)	4511	4511	4511	4511
	4.16	Turning radius	Wa(mm)	2090	2090	2200	2200
Performance	5.1	Travel speed, no load / full load	km/h	12/11	12/11	12/11	12/11
	5.2	Lifting speed, no load / full load	m/s	0.205/0.221	0.196/0.214	0.210/0.215	0.193/0.212
	5.3	Descent speed, no load / full load	m/s	0.350/0.260	0.365/0.240	0.365/0.240	0.365/0.240
	5.8	Max.grade capacity, no load / full load	%	20/15	20/15	20/12	20/12
	5.1	Brake		hydraulic	hydraulic	hydraulic	hydraulic
Motor	6.1	Drive motor	kw	8	8	11	11
	6.2	Lifting motor	kw	8.6	8.6	12	12
	6.3	Battery type		Lead acid	Lead acid	Lead acid	Lead acid
	6.4	Battery capacity	V/Ah	48V400Ah	48V450Ah	48V480Ah	48V550Ah

Forklift Picture Product DescriptionLED SEARCHLIHT
High quality searchlight, long service life, high safety.CHAIN
Multi piece composite chain,reinforce the chain, with strong load-bearing capacity and smoother transmission.SEAT
High end safety seat,it can be adjusted back and forth for 150 mm, which is comfortable to drive.DASHBOARD
Large screen dashboard,good visibility, intuitive reading, friendly human-computer interaction.TIRE
Solid tires, durable and puncture resistant, improve efficiency.AXLE
Cast iron integrated casting axle, more stable and safe driving work.BATTERY
Lead acid battery, lithium battery optional, long service life, working time 8-10 hours.
Implement
Packaging & Shipping
Company Profile
Nanjing Liftor Machinery Co,.Ltd is a high-tech enterprise professionally specialized in R&D, production, sales, service of electric forklift, diesel forklift, pallet truck and stacker. It is located in Nanjing, Jiangsu Province with advanced forklift manufacturer technology, processing equipment and perfect product testing center.Our company is the China Automobile Industry Association member unit. We won the honorary title such as "Outstanding Enterprise of Quality Management, Credibility and Service AAA level", "National Enterprise of Good Creditworthiness", "National Quality Management Advanced Enterprise" etc. The company has already passed the safety production standardization and the quality authentication of ISO9001:2008 and European Union CE certification, fit-out national patent certificate.Our main storage equipment are electric truck, stacking car, reach forklift trucks, towing vehicle, order picker, AGV pilotless truck, counter balanced weight forklift and so on. It is widely used in various places of modern logistics.
FAQ
1.Are you forklift factory or trading company?We are the factory which have been manufacture electric forklift,diesel forklift,reach truck, stacker and pallet truck for more than 25 years.2.What is the delivery time?Generally forklift is can delivery immediately if the forklift are in stock. Or it is 15-30 days if the forklift are out of stock.3.What is the Payment?TT(bank transfer), LC at sight all will be accepted.4.Is OEM & ODM available?1). We can do the forklift according your design2). We can provide customized solutions according your requirments.5.Can you provide training for the customer?Yeah. We can provide forklift training for our customer.6.What certification do you have?Our company has passed ISO 9001:2008 and all of the forklift have CE certification.7.How can I get the best price?Price is the most concerning problem of every customer, if you want to know the forklift price, we need to know your detailed requirements.

---
