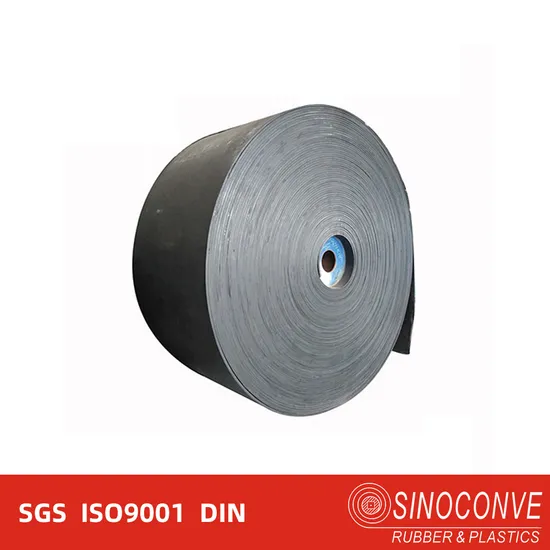

High Quality 900mm Width Rubber Conveyor Belt for Mining Machine

Product Description

Product Description
SINOCONVE conveyor belts are designed to the highest standards ,to transport all types of bulk material,including mining, stone and earth handling , building industries,recycling, steel processing , wood, paper and pulp.
Property-- High strength
-- High resistant to abrasion
-- Low elongation
-- Resistant to impact
-- Suitable for long distance,large loading capacity and high speed transportation
Manufacturing standardsGB/T 7984
DIN 22102
JISK 6322
AS 1332-2000
SANS 1173:2005
BS 490
Conveyor Belt PropertiesRubber conveyor belts have the following properties depending on the environment in which they are used:-----Abrasion Resistance-----Anti-static-----Fire Resistance-----Cold Resistance-----Heat Resistance-----Oil Resistance
Specification

Specification
Cover Rubber grade	8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA	DIN-X,Y,W RMA-1,RMA-2 N17,M24
Belt width (mm)	500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500	18",20",24",30",36",40",42" 48",60",72",78",86",94"
Tensile strength	EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6	330PIW, 440PIW
Top+Bottom thickness	3+1.5, 4+2, 4+1.5, 4+3, 5+1.5	3/16"+1/16", 1/4"+1/16"
Belt thickness	3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt length	10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type	moulded(sealed) edge or cut edge

Quality control
Step 1: Raw material inspection Rubber compound test EP fabric test
Moving die rheometer analyzes the characteristics of Rubber Compound Tensile strength test and elongation test when broken.Step 2: Advance equipment to guarantee quality from the details Calender process Forming process
4 rollers celender machine is able to stick rubber on both The forming tension is even between different plies,which
side of the fabric in one time.This can reduce the strength can avoid wrinkled fabric and guarantee an even thickness
loss of the rubber during the process. of belt core.
Step 3:Finished belts inspection
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our facto. Length and surface inspection Thickness inspection
WIdth inspection
Company InformationFAQ
Q1. Are you a manufactuer?Yes, we mainly produce Rubber conveyor belts and Rubber v belts over 20 years.
Q2. What about the lead time?1) 3--5 days for sample
2) 15--20 days for mass production. If urgent,we have green channel
Q3. How to pay?1) T/T or L/C through bank account
Q4. How about package?1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric

---
