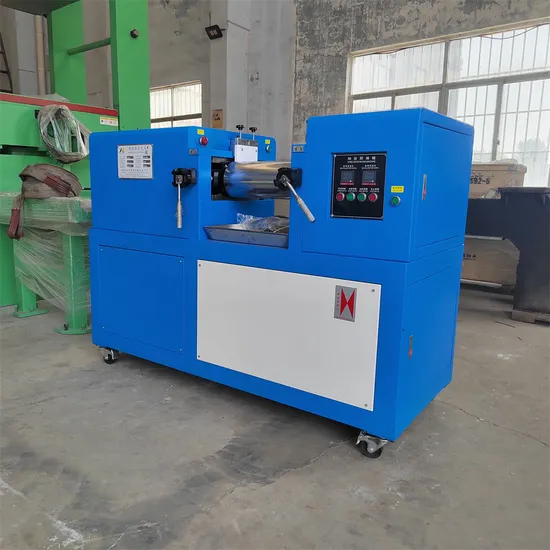

6 Inch Xk-160 Lab Mixing Mill Machine with Electric Heating

Product Description

Product Parameters Lab rubber mixing mill machine is used for plasticizing,mixing,thermal refining and sheeting of rubber(plastic),wildly used for tyre factory,conveyor belt factory,reclaimed rubber factory and shoes factory,etc.

Model	XK-160
Mixed capacity	0.5-1kgs / 2-3kgs / 5-7 kgs
Temperature	room temperature ~ 300 °C
Temperature control	LED display, buttons to set the input and display output value
Temperature control	P.I.D controlled
Heater	cylindrical mold is heated
Warm-up time	room temperature ~ 150 °C about 20min
Temperature accuracy	± 3 °C
Roller Dimensions	Φ50X150mm / Φ100X150mm / Φ160X320mm
Drum revolutions ratio	Standard revolutions ratio 1:1.25
Roller hardness	HRC 50 ~ 60
Power	1500W / 2800W / 5500W

Product Description Features:
1.Roll:
1.1.Adopts the Chilled Cast Steel,The chill depth of roller is 4-20mm,and its hardness of working,surface is HS68-75,and it is temper treatment;
1.2.Surface is hard and wear-proof;
1.3.The internal cavity is processed to make temperature well proportioned on the roll surface.
2.Bearing Type is Ball Bearing:
The end of rollers are supported by the roller ball bearing bush,Bearing equiped with china famous WAFANGDIAN Brand().
It has the advantages of running smooth ,energy saving(save 5-8% power), low noise and long life.
The seal of bearing both side adopt no skeleton oil seal, the material of oil seal is FKM
Traditional nylon bush is not wear resistant and hard resistant , so its easy to be damaged ..All our machine adopts the roller ball bearing . Kindly note our machine adopts totally 8 roller ball bearing , not 4 bearing.
3.Transmission System:
3.1.Hardened tooth-surface reducer, Compact structure,Gear made of 20CrMnTi material, carburized and quenched, layer depth 0.8 to 1.2 mm, hardness above HRC55,high impact resistance.
3.2.Higher transmission efficiency;
3.3.Lower noise;
3.4.Longer Service Life;
4.Cooling/Heating Device:
Adopts Hollow structurer roller,working together with closed type rotary joint ,convenient for water flowing in and out,cooling/heating roller surface,uniform temperature.
5.Safety-system:
in case of emergency,mixing roller will stop immediately and rotate in the opposite direction.At the same time,The front roller will be separated with rear roller immediately,the distance between two roller will enlarge immediately(Hydraulic/Mechanical drive,manual gap adjustment device do not have this function),protect operation worker hand,It is safe and reliable.
6.Protection Device:
Machine is equipped with an overload protection device to prevent the main components from being damaged.
7.Lubrication System:
The machine equipped with Automatic glycerin/oil lubrication system.
Product Display:
Company Information:
Qingdao Sea King Machinery Co., Ltd. is located in the west coast of Qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years.
The company has passed ISO9001:2008 certification,CE certification,SGS certification,france BV certification.
The main product of our company: Internal mixer, Two roll Mixing mill ,extruding equipments,calendar equipments,Cutting machine,cooling equipment,Vulcanizing equipment,and Reclaimed rubber production line,rubber sheet extrusion line,Motorcycle&bicycle Tube &Tires production line,Conveyor Belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine ,Raw Rubber Material Rubber Products and so on.
Our company has import-export rights. The products have been exported to many countries and districts around the world, such as America, France, Canada, Dubai,Australia,Peru,Brazil,Ecuador ,SouthAmerican,Southeast Asia, and the Middle East. By the advanced quality and service, our products have gained the praise of domestic and foreign customers.
We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service".

---
