PCHG-36 UTERS interchange PAR/KER Peco Facet Oil mist separation filter element PCHG series
Filter Element Application:
The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.
Principle of filtration
The droplets of oil, water and other liquids are captured by the ultrafine fibers inside the coalescer. These micron-sized fibers form a tortuous channel for the airflow, forcing solid particles and liquid droplets to collide, diffuse and intercept directly, and intercept directly. Under the action of this filtering mechanism, it is captured by the ultrafine fibers, and the surface tension of the liquid causes the small droplets to coalesce into larger droplets. Due to gravity, the large droplets settle to the bottom of the container.
The glass fiber coalescing filter element is made of high-density gradient glass fiber. In order to reduce damage and loss, it is designed as an integral monolithic tube structure. The surface of the filter element is treated with hydrophobic and oleophobic treatment, which can meet the requirements of various precision levels.
Polyester fiber coalescence filter element The filter element is usually made of polyester fiber synthetic material, which has good compatibility with various fluids. The filter element is spirally rolled with a multi-layer structure, and each layer uses fibers with different properties. The expected filtration accuracy can be achieved by controlling the shape, size, thickness and density of each layer of fibers.
The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtration accuracy can reach 0.1μm.
Product advantages
The glass fiber coalescing filter element is a high-density gradient glass fiber, which efficiently coalesces liquid mist and droplets in the airflow, and has high filtration accuracy. The structure is stable, there is no media fiber shedding, and it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; good environmental protection, 100% synthetic material, completely burned without residue.
Product specifications
The outer diameter is 3.5 inches, 4.5 inches, 6 inches;
Length 16, 18, 20, 32, 36, 40, 72 inches
Filter frame material-stainless steel and carbon steel
Product performance
The accuracy range is less than 0.3 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron, 10 micron
Initial pressure difference ≤0.15psig
Replacement pressure difference<0.6psig
Operating temperature 0~150℃
Scope of application
1. Aviation fuel, gasoline, kerosene, diesel;
2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;
3. Turbine oil and other low viscosity hydraulic oil and lubricating oil;
4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;
5. Other hydrocarbon compounds

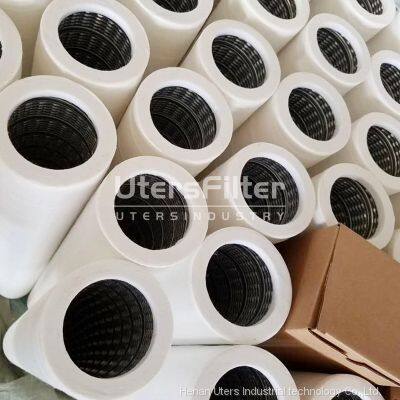

Package Pictures
Product Extension
PCHG-312
PCHG-318
PCHG-324
PCHG-336
PCHG-372
Why choose us?
1) Professional hydraulic filter manufacturer ,own factory ,has a professional team .
2) Small piece of sample can be free.
3) Competitive prices and timely deliver.
4) Quality guaranteed and thoughtful after-sales service .
5) Accept any quality tests .
Trade & Market :
Over several years development , our products have reached the domestic and international advanced level in the same industry . our products are exported to Britain ,Australia,India ,Canada and other countries and regions ,the excellent quality has gotten high prise by the domestic and foreign customers ,if any new inquiry ,welcome here.
Company information
CONTACT US
Henan Uters Industrial Technology Co.,Ltd
Tel: +86-391-8346801 |QQ: 3312720485 |Cell: +86 18903897260
Wechat/Whatsapp/Skype: +86 18903897260 | Email: penny@utersind.com
Address: Aliyun Innovation Center ,Wuzhi District,Jiaozuo City,Henan Province,454950,China.
>>
