LRF1550S Eye-Safe Laser Rangefinder Module

Product Details

Product Description

Product Description

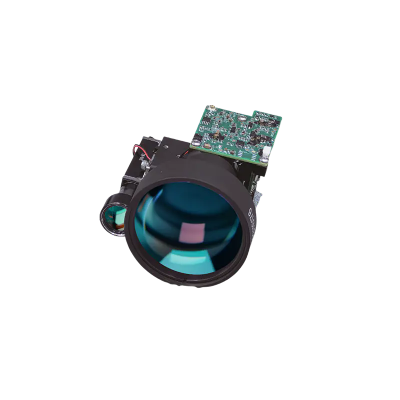

LRF1550S Eye-Safe Laser Rangefinder Module
Built upon a proprietary 1,535nm semiconductor laser, a high-performance optical system, and a self-developed rangefinding algorithm, this module not only excels in technical capabilities and reliability but also meets industry standards, supports local manufacturing, and ensures consistent quality across production batches.
It is suitable for a wide range of high-performance target detection systems.
FeatureSelf-Developed Laser for Enhanced System Stability
1. Incorporates a self-developed 1,535nm eye-safe erbium glass laser paired with a well-designed optical system.
2. Achieves a measuring distance of 15km and adapts to various harsh environmental conditions, making the system more stable.
Compact Design for Minimized System Dimensions
1. Boasts compact dimensions of just 104×64×73mm and a weight of only 310g, which makes it easy to integrate into systems with strict size requirements.
Comprehensive Functionality for Enhanced System Performance
1. Uses a standard UART interface to facilitate easy communication with the main control and convenient integration into systems.
2. Provides the multi-target rangefinding feature to obtain multiple types of distance of targets in a single emission, accommodating diverse rangefinding requirements.
SpecificationBasic FeaturesElectrical CharacteristicsPhysical CharacteristicsEnvironment Adaptability

Laser Wavelength1535±5 nmEye-safe ClassClass1/1MMaximum Range: Building20000mMaximum Range: Car15000mMaximum Range: Human (0.5×1.7m)6700mMaximum Range: UAV (0.2×0.3m)3700mMinimum Range100mMeasuring Accuracy±2mMeasuring Frequency1~5HzLaser Emitting ApertureΦ14mmLaser Divergence Angle~0.3mradReceiver ApertureΦ52mmDetection Probability≥98%False Alarm Rate≤1%Multi-Target DetectionUp to 5Range Resolution30m
Communication InterfaceRS422Baud Rate9600/57600/115200 (default)Power Supply ModeDC 9~15VPower Consumption≤4WPeak Power Consumption14W@12VStandby Power Consumption≤60mW
Weight≤310gDimensions104×64×73mmShock75g, 6msVibration0.01~0.04g2/Hz,20~2000Hz
Operating Temperature-40℃~+70℃Storage Temperature-55℃~+75℃

Application Scenarios

Engineering Survey

High Performance Pods

Photoelectric Detection

UAV Airborne
