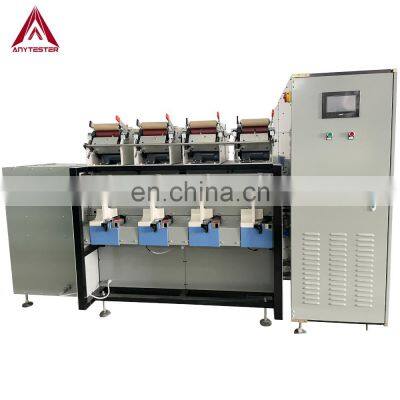

Product DescriptionAT206R Laboratory Rotor Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert fiber into yarn.Features★ It adopts touch screen and PLC control.★ Imported frequency converter of high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for cotton fiber or wool fiber (alternative) with different partsSpecificationModelAT206RSpindle number1, 2, 3, 4 or customizedFiber typeCottonRevolving cup speed30000rpmCombing roller6000rpmDrafting range30 ~ 250Coiling speed20 ~ 110m/minFiber length22 ~ 42 mmOutput capacity0.25 ~ 1 kg per hour or customizedPower220V/380V, 50/60Hz, 640WDimension800*600*1700mmPacking & DeliveryPackagingSize(cm)73 (L) * 72 (W) * 168.5 (D)Weight260 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products Contacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertifications
>>
