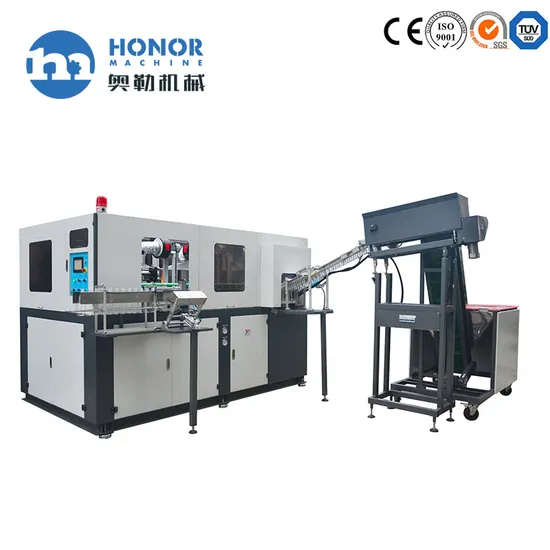

1.5L-2.0L Automatic Plastic Bottle Making Machine Pet Preform Stretch Blowing Molding Machine

US$24,000.00-38,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HM
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Product Name
Bottle Blowing Machine
Capacity
60-10000bph
Bottle Material
Pet
Bottle Size
0.2-2L
Bottle Shape
Round/Square
Working Type
Stretch Blow
Controlled by
Siemens PLC
Cavities
by Order
Automatic
Semi/Fully/Automatic
Transport Package
Wooden Package
Specification
50-500m2
Trademark
Honor Machine
Origin
China
HS Code
84774010
Production Capacity
30sets/Month

Product Description

1.5L-2.0L Automatic Plastic Bottle Making Machine Pet Preform Stretch Blowing Molding Machine1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
Model HM-A2 HM-A4 HM-A6 HM-A8
Capacity(500ml/bottle/h) 1800-2500 3200-4000 5500-6000 7600-8000
Max volume(L) 2L 2L 2L 1.5L
Max neck diameter(mm) 45mm 45mm 45mm 45mm
Max bottle diameter(mm) 100 100 90 76
Cavity 2 4 6 8
Total power(kw) 25 45 60 86
Operation power(kw) 12 25 45 65
Working pressure(Mpa) 1.0Mpa 1.0Mpa 1.0Mpa 1.0Mpa
Low pressure consuming(L/min) 1000 1600 1600 1800
Blowing pressure(Mpa) ≤3.0Mpa ≤3.0Mpa ≤3.5Mpa ≤3.5Mpa
High pressure consuming(L/min) 1200 2400 3600 4200
Machine size(mm) 1900*1350*2000 2200*1800*2000 4100*2000*2000 6900*2100*2000
Machine weight(kg) 220 250 320 390


Honor Machine provides the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers.
We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project.
Since 2008, Honor Machine has been one of the leading suppliers of packaging technology. Located in the beautiful city of Zhangjiagang, Jiangsu Province, a new port city famous for professional industrial city. We are committed to:
