W8LC Three Way Line Array Loudspeaker

Product Description

Detailed Product Description

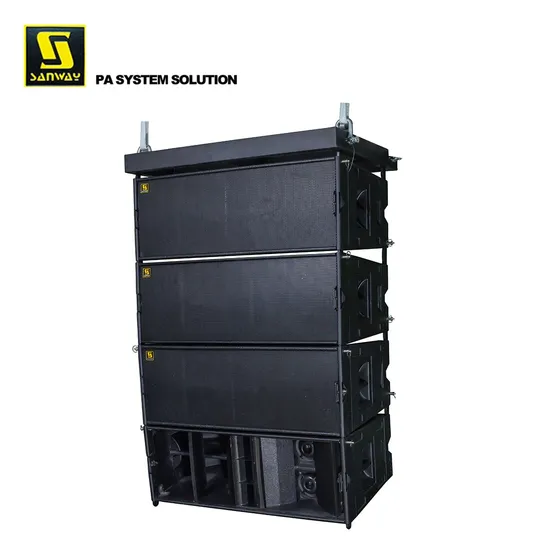

Single 12" Neodymium Line Array Cabinet Box W8LC Three Way Line Array Loudspeaker
1>. Line Array Speaker
2>. Mini Line Array System
3>. Audio Speaker Line Array
4>. Single 12" Neodymium Line Array
FEATURES
1). Compact, high performance three-way line array enclosure
2). High power - maximum SPL 129dB continuous, 135dB peak (single unit)
3). Superior bass impact - all horn design
4). Wide bandwidth - 60Hz-18kHz ± 3dB (single unit)
5). True 90° (-6dB) horizontal MID and HF pattern control
6). Very smooth off-axis response - useable out to 120° (-10dB)
7). Compatible with the full-sized W8L Line Array
8). Fast, integral rigging system with variable splay angles from 0° To 7.5°
9). Common grid may be used for flying or ground stacking
Specifications:

line array audio speaker system W8LC
Frequency Response (±3 dB)	60 Hz - 18 kHz
Sensitivity (1w/1m)	LF 103 dB / MF 106 dB / HF 109 dB
Maximum SPL	LF 135 dB / MF 135 dB / HF 135 dB
Nominal Impedance	LF: 8 ohms MF: 8 ohms HF: 8 ohms
Power rated(rms)	LF: 400 watt MF: 200 watt HF: 100 watt
Peak Power handling	LF: 1600 watt MF: 800 watt HF: 400 watt
Nominal Dispersion	90ºH optional×7.5ºV
Dimensions (H x W x D)	367 mm x 1000 mm x 550 mm
Enclosure Material	18 mm plywood
Surface Finished	Textured grey wear-resistant paint
Grille	heavy grey perforated steel framed
Net weight	58kg
Low Frequency Driver	12" high effeciency Neodymium magnet driver
Mid Frequency Driver	2×6.5" high effeciency Neodymium magnet driver
High Frequency Driver	3×1" effeciency Neodymium magnet driver
Input Connectors	Speakon NL8×2

---
