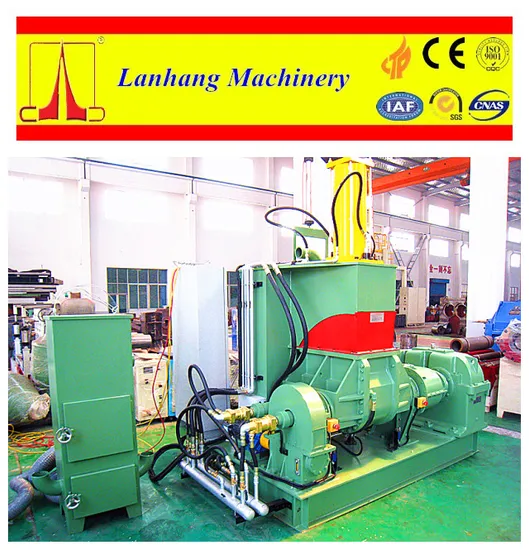

High Quality Electric Flip Type Pressed Kneader

Product Description

Quick Details
Condition: New
Type: Rubber Mixer
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: X(S)N-75/30B
Voltage: 380V
Power(W): 110000
Dimension(L*W*H): 3.8x2.2x3.2 m
Weight: 11 T
Certification: CE,SGS,CNAS,IAF
Warranty: 12 months
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Plastic Pressed Mixer
Rubber Kneader Color: Green / Blue / etc. (customize available)
Dispersion Kneader Material: Stainless Steel / Carbon Steel / Casting Steel
Motor of Dispersion Kneader: AC Inverter or DC Variable Speed
Dispersion Mixer Rotor: Tangential
Dispersion Mixer Rotor Treatment: Wear-resistant Alloy
Packaging & DeliveryPackaging Details:Delivery Detail:

Wood Pallet & Film Wrap (Plastic Pressed Mixer)

60 Working Days Since Down Payment (Dispersion Mixer)

Specifications
Plastic Pressed Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Hydraulic Tilting
4. Tangetial Rotor

Why Choose Plastic Pressed Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management




Outline of the Dispersion Mixing Machine
Excellent performance of dispersion enables various kind of materials to mix, from low to high hardness. Not only rubber, plastic or ceramic but Nano-level compound can be applicable

Main Parameters of Our Dispersion Kneading Machine

Model	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110	X(S)N-150	X(S)N-200
Working Volume (L)	35	55	75	110	150	200
Rotating Speed (r/min)	30	30	30	30	30	30
Speed Ratio	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2
Loading Type	Front Feeding	Back Feeding	Front Feeding	Back Feeding	Back Feeding	Back Feeding
Discharge Type	Hydraulic Tilting or Extrusion
Tilting Angle	140
Main Motor Power (Kw)	55	75	110	185	220	280
Dimension (m)	3.0x1.8x2.7	3.5x2.2x2.8	3.8x2.2x3.2	3.8x2.2x3.2	4.4x2.8x3.8	4.7x3.0x4.2
Weight (T)	6.5	8.5	10.5	14	21	25

Application of Plastic Pressed Mixer
E.V.A. Rubber & TPR, Soles, Rubber Rollers, Hoses,Belts, Sponges, Sports balls, Vibration Insulators,Elastic Cords, Sealing Materials, Tires, Tapes, aster Batches, Pigment, Ink, Automobile & Electric Rubber Parts, Chemical Industry Compounds.
1. Rubber product for Automobile (Oil seal, Body seal, Gasket, Belt, Hose, Tube)
2. Electric wires (Rubber, Plastic, Wire harness)
3. Belt (Power transmission belt, Conveyor belt)
4. Roll (Rubber, Plastic, Printing, Copying machine)
5. Rubber product for Medical (Plug, Cap, Glove, Dental)
6. Sporting goods (Golf ball, Athletic ball)
7. Food (Chewing gum)

Feature of Lanhang Machinery Dispersion Kneader
1. An Automatic temperature and time control system to provide 100% mixing effect.
2. Easy to clean chamber and easy color changing.
3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost.

Structure Design of China Plastic Pressed Mixer

Packaging & Shipping
Wood Pallet & Film Wrap ( Plastic Pressed Mixer )

Our Services
Plastic Pressed Mixer
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
