Auto body floor pulling system modular rail frame machine

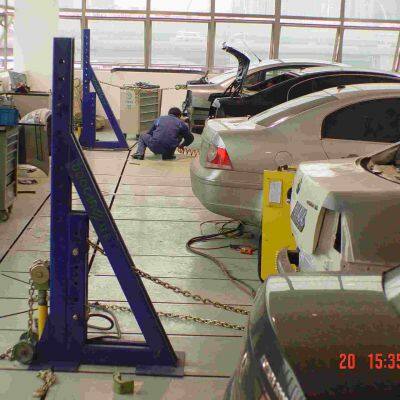

The auto body frame floor pulling system is composed of modular rails built into the floor. Mobile, powerful and compact pulling towers are equipped and can be quickly adjusted to different heights and is supplied with a remote control to ease the operations. It can be adapted to various workshops. The floor straightening system features taking less body shop space, saving time of vehicle drive-on and drive-off and positioning on frame racks or benches, as well as less investment.
Features and benefits:
1. The auto body floor pulling system is designed for collision repair of any damaged vehicles with rocker (sill) panel.
2. Modular rails can be mounted on the ground or under the ground. Modular system allows easily assemble one or more bays of desired dimension.
3. Rail frame can be made 4000×6000mm, 4500×7000mm, or tailored to your body shop size.
4. The unique fixture clamp design allows using special adaptors for securing rocker (sill) panel; adaptors fasten on the tower with bracket or chock.
5. CELLETE anchoring clamp height can be adjusted for positioning, locking, supporting function.
6. Pulling tower can be fixed in any place of the frame with keys and pins.Adjustable collars allow accurately adjust pulling directions. Frame straightening and pulling can be proceeded in any directions.
7. Pulling tower is equipped with 10T hydraulic ram, it is powerful and high efficient.
8. 5M pulling chains keeps universal pulling capacity.
9. Beyond pulling and straightening, the frame can connect with measuring system.
10. Besides collision frame pulling and alignment, the modular rail frame system can be used for spare parts assembly, repair and maintenance.
>>
