Double Comb Wire Binding and Punching Machine for Calendar Notebook Exercise Book

Product Description

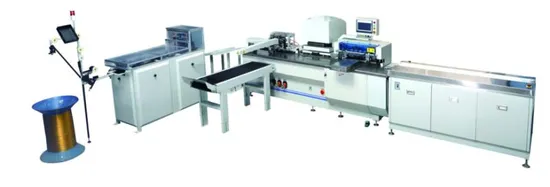

PBW-580 double wire punching and the binding inline machine is recognized as a stable, high-effective, easy-operation used for the majority of notebooks, sketchbooks, documents, desk and wall calendars, and other productions. It has multiple layers in the punching station and reliable jaws to transport papers. It could paper separate, punching, close, and collect all functions in one machine. And with the optional calendar hanger device, hardcover manual punch to improve the efficiency of customers.
Technical data:

Min. punching width	72 mm
Max. punching width	580 mm
Min. unpunched length	105 mm
Max. unpunched length	800 mm
Max. punching thickness	16 mm
Selectable punch pins (QSA)	Yes
Binding size	1/4" - 3/4"
Stations:	Feeding, Punching, Aligning, Closing 4 Stations
Punching Stoke:	5 strokes and max 3mm per stroke
Speed:	up to1800 books/hour
Power:	3PH 380V (other voltage on request)
Dimension (L×W×H):	6×1.3×1.6m

Specification of the size:
Machine detail:
Workshop and customer visiting:
Loading

Exhibition
Common questions and answers:
1. Are your a factory or trading company?
We are a professional double wire products machines maker since 2008 and we are the audited supplier in MIC supervised by BV.
2. What about the warranty time?
12 months when you receive the machine. When you get the machine we could send the engineer to supply training service for the first time but the traffic fees and the accommodation arrangement shouble be on your side. Automatic inline machine training need for 3-4 days and semi-auto machine for 1-2 days.
3. How many molds attached to one machine?
One machine attaches one mold and if you need more sizes, you could make the order.
4.How about spare parts?
Most of the electrical parts and bearings we used are international brands such as SIEMENS. You could buy them in your local market. For the molds, we have stocks of normal double wire binding size molds. The special mold sizes need 10-15 days.
5. Do you have a dealer in my country?
For the hot selling countries, we have the dealers could supply training service for you and detail your could contact with us.

---
