Basic Info.
Excitation Mode
Permanent Magnet
Casing Protection
Protection Type
Structure and Working Principle
Brushless
Applicable Equipment
Tour Car Boat Golf Cart Electric Car
Packaging & Delivery
Package Size
30.00cm * 10.00cm * 10.00cm
Package Gross Weight
10.000kg

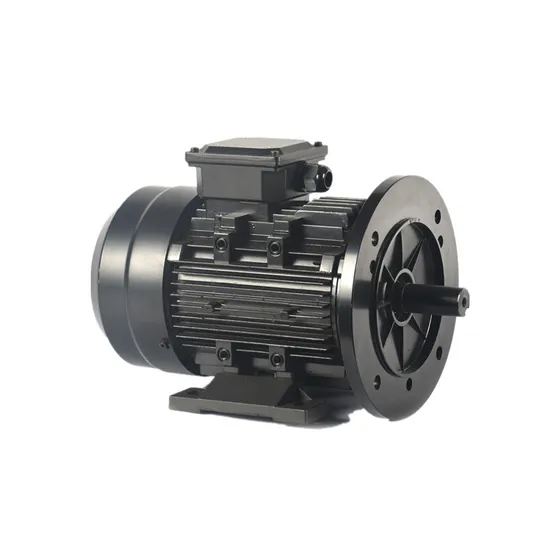

Product Description
Model
| Rated power/Kw
| Rated volt/V
| Rated speed/rpm
| Rated Current/A
| Rated Torque/N.m
|
LK90-48-3K
| 3
| 48
| 3000
| 83
| 9.55
|
LK112-48-2K
| 2
| 48
| 1500
| 42
| 12.7
|
LK112-48-3K
| 3
| 48
| 1500
| 63
| 19.1
|
Brushless DC motors (BLDC) have been a much focused area for numerous motor manufacturers as these motors are increasingly the preferred choice in many applications, especially in the field of motor control technology. BLDC motors are superior to brushed DC motors in many ways, such as ability to operate at high speeds, high efficiency, and better heat dissipation.
They are an indispensable part of modern drive technology, most commonly employed for actuating drives, machine tools, electric propulsion, robotics, computer peripherals and also for electrical power generation. With the development of sensorless technology besides digital control, these motors become so effective in terms of total system cost, size and reliability.
Product performance
Brushless,no spark
Large range of speed adjustment
High efficiency,high torque
Low Start current,Low noise
Small size,light weight
The high reliability of double hall way.
Rated volt V
| 48
| 60
| 72
| 96
| 110
| 220
|
Rated Speed rpm
| 1500
| 1500
| 1500
| 1500
| 1500
| 1500
|
Rated Power KW
| 2.2~5.5
| 2.0~3.5
| 5~6
| 2.0-4.5
| 4.0-5.5
| 10
|
Max Power
| 8 times than rated power
|
Rotation Direction
| CCW is forward
|
Over speed
| In 1.5 times rated volt,no load running 30 mins,appearance and performance is normal
|
overload capacity
| 3 times rated torque.running 5 mins, performance js no change.
|
W1
| Footing mounting
|
L1
| Flange ,connect with flange
|
L2
| flange,non-standard,according customers requirements flange to do
|
Pin
| Color
| Function
|
1
| blue
| Motor phase U
|
2
| yellow
| Motor phase V
|
3
| green
| Motor phase W
|
4
| red
| 5V power
|
5
| yellow
| Hall A
|
6
| green
| Hall B
|
7
| blue
| Hall C
|
8
| black
| Ground
|
Size
Flange mounted
Foot mounted
