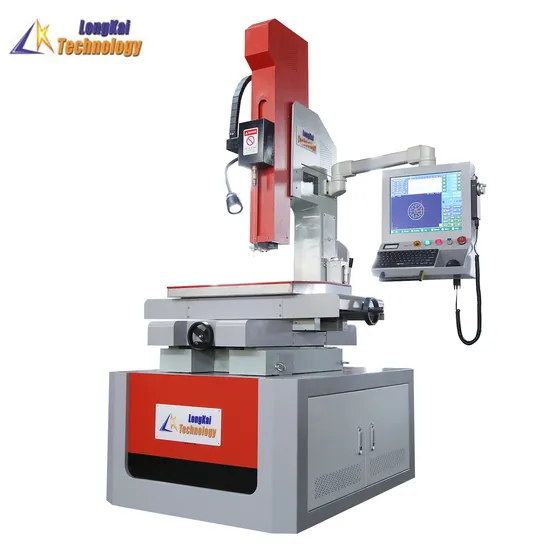

Hot New Condition Dz703 High Performance EDM Drilling Machine for Small Hole

Product Description

Products introduction
High temperature corrosion metal produced by discharging between electrodes and metals in EDP perforator is used to process fine holes of super- hard steel, cemented carbide, copper, aluminium and any conductive material. EDP can process 0.015mm or tapered holes at least. It is widely used in precision die processing, and is generally used as the auxiliary equipment of WEDM machine tools. High temperature corrosion metal produced by discharging between electrodes and metals in EDP perforator is used to process fine holes of super- hard steel, cemented carbide, copper, aluminium and any conductive material. EDP can process 0.015mm or tapered holes at least. It is widely used in precision die processing. It is generally used as the auxiliary equipment of WEDM machine tools.
ZNC Processing matching 1. three axis digital display, control deep processing;
2. High-speed and low-speed one button operation (just select the diameter of the corresponding electrode wire)
3. connected pump, rotary head alloy seal, long service life.
Performance characteristics
Machining aperture 0.3-3.0 mm, maximum depth-diameter ratio can reach more than 300: 1.
Processing speed can reach 5-40 mm per minute, servo stroke 300, can use super-long electrode tube, drug-saving electrode tube 15%. Can process stainless steel, quenched steel, cemented carbide, copper, aluminum and other conductive materials
It can penetrate directly from inclined plane and surface.
Servo lifting adopts double linear guide rail and electric lifting, which ensures the processing accuracy and speed of products.
The spindle adopts two-speed control mode, which can double the speed of back-off and closely track the processing time, so as to realize efficient and stable processing of fine electrodes.
Taiwan rotary head processing is stable and leak-free, equipped with high-pressure water pump
The X and Y axes of the worktable are equipped with grating digital display, and the operation is accurate.
Drilling EDM parameters

specifications model	ZNC703-2030	ZNC703-3040	DK703	DK703D	DD703	DD703Z	DZ703
Table length*table width(mm)	330*480	330*480	330*480		330*480		420*320
Work surface travel(mm)	200*300	300*400	200*300		300*400		400*300
Spindle head stroke(mm)	280	380	280		380		360
Servo travel (mm)	300	400	300		400		300
Electrode diameter(mm)	0.3-4.0		0.2-3.0	0.3-6.0	0.2-3.0	0.3-6.0	0.3-3.0
Maximum processing speed(mm/min)	40						40
Maximum depth to diameter ratio	300:1						300:1
Working fluid	pure water						pure water
Work pressure(mpa)	7						8
Maximum machining current(A)	30						30
Maximum power consumption(KVA)	3						3.6
Way to control	Z axis CNC	Z axis CNC	Z axis automatic	Z axis automatic	Z axis automatic	Z axis automatic	Z axis CNC
Digital display	Triaxial	Triaxial	Two-axis digital display, optional three-axis digital display				Triaxial

---
