Product Details
Product Description
Product Description

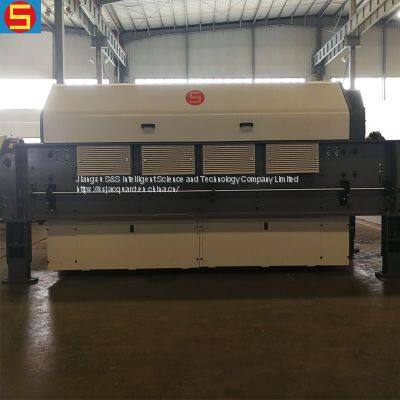

SLX 5376 cam type Electronic Jacquard machines are widely used for weaving flat fabrics. They are in compliance with set industry standard. This model of Electronic Jacquard Loom is manufactured by using quality assured components and sophisticated technology. S&S is highly acknowledged in the market due to its high performance and premium quality. All S&S digital jacquard textile weaving machines are attentively examined by the quality inspectors to ensure their flawlessness before shipping to our customers.The SLX 5376 cam type computerized jacquard machines are in strict material selection and production process perfect balance of moving parts, conjugate cam oil bath lubrication, all bearings permanent lubrication to ensure wear resistance, long service time, maintenance work will be reduced to the minimum, coaxial system driven by conjugate cam. Further strengthened drives and sturdy base of this electronic jacquard weaving looms make the machine to withstand higher loads. This model of digital jacquard machines are suitable for various of weaving looms, such as Rapier Loom, Air Jet Loom, water jet loom, Shuttle Loom, Projectile Loom. More characteristics as following:
Applicable to：
Rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom with any reed width.
Weaving Products:
Label, tie, upholstery fabric, curtain fabric, shading fabric, sofa cloth, bedding cloth, towel, carpet, velvet, garment fabric, sari fabric, silk fabric, lining fabric etc.
Hooks:5376
Shed Opening: 55-120mm
Max Speed: 750 rpm
Advantageous Features：
1. Sealed fuselage, optimized filtration and ventilation system of our cam type digital jacquard machines can effectively prevent flying flowers into the system.
2. The optimized shuttle opening keeps good effect. The opening curve can be designed according to the need to ensure the best weft insertion, reduce the tension on warp yarn and breaks
3. The self-locking characteristic of the conjugate CAM can reduce the interference to the braking performance of the loom
4. The concentrated lubrication oil hole and grease hole are easy to reach and check.
5.The small pull rod composite bearing with special filling hole, to ensure the longer service time.
>>
