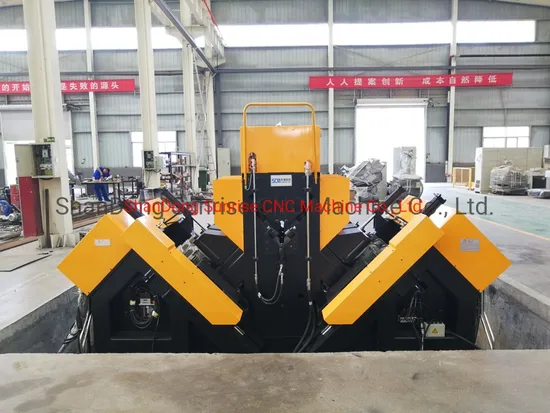

TADM2532 China Manufacturer Automatic CNC High Speed Angle Steel Drilling, Marking, Shearing Machine for Angle Tower Fabrication

Product Description

Applicable Industry:
The production line is composed of infeed transfer table unit, rotating loading unit, feeding conveyor unit, marking unit, two drilling units, outfeed conveyor unit, hydraulic system and electrical control system etc.
Product composition:
This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product Feature: Adopt CNC technology, servo motor infeeding, with high efficiency, stable working precision. Key hydraulic, pneumatic and electric elements are all domestic and international brand. Easy programming and can directly use the program data made by lofting software. Software with Chinese, English interface, easy operation, and can display the drawing of workpiece. Loading, marking, drilling and unloading are all performed automatically. Just need to input size of work piece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM lofting software direct conversion. The machining line is installed with supporting &straight pressing device. With avoided shearing functions, so as to process fixed length angles. With self-diagnosis failures function. Shearing unit is optional, using double blades cutting. Specifications:

Model	TADM2532	TADM3635
Angle size(mm)	140×140×10~250×250×32	140×140×10~360×360×35
Max. length of raw material (m)	14
Max. length of finished angle (m)	14
Length of loading conveyors (m)	18
Length of unloading conveyors (m)	10.8
Marking force(kN)	1030
Marking unit type	Close type
No. of character group	1
No. of character	15
Character size (mm)	14×10×19
No. of drill on each side	3
Max. drilling diameter (mm)	26
Taper of drilling spindle	BT40
Max. Spindle rotation speed(r/min)	6000
Max. feeding speed (m/min)	40
No. of CNC axes	9
Overall dimensions(m)	30×7.5×3	33.3×8.9×32.5
Total power (kW)	≈109.7	≈111.5
Machine weight (kg)	≈30000	≈34000

Remark:Shearing unit could processed according to customer's requirements.
Packing & Delivery
Packing Details : Packing, this model need 1*40HQ&1*40OT;
Delivery Details : 30-60 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Factory
Our Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2015 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Quality Make Brand, Honesty Win Market!
Innovation Promote Development, Harmony Converage Talents.
Thanks For All Customers Believe And Choose Sunrise CNC.

---
