Jiecang R12r-Th Electric Height Adjustable Standing Desk Frame

Product Description

JIECANG R12R-TH Electric Height Adjustable Standing Desk Frame
Product Description
Data sheet
JC35TS-R12R-TH

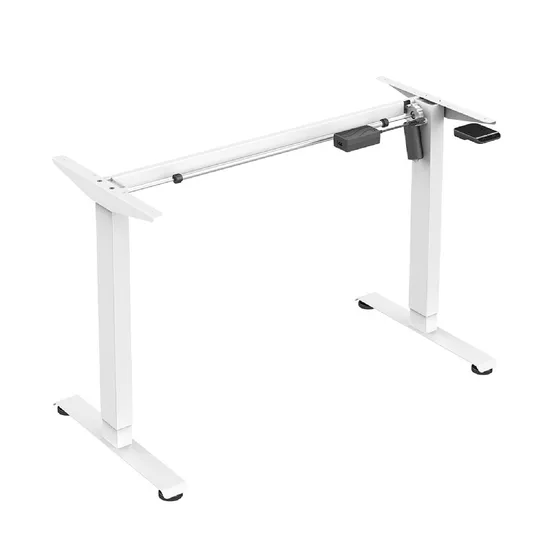

JC35TS-R12R-TH is a 2-stage reverse rectangular tube single-motor height adjustable desk frame.
As a basic product, JC35TS-R12R-TH has 2 columns synchronized and stable, which can meet the basic functions of a height adjustable desk.
Equipped with sensitive anti-collision function, safe lifting.
The column uses the motor to block the rotation to realize the limit position stop function.
Supporting integrated control box to ensure low noise and stable operation, and the standby power consumption of the system is less than 0.2W.
Features
·Non-porous design of tube
·Rated load: 700N
·Full load & non load capacity keep the stable speed: 17mm/s
·Low noise level: ≤53dB
·The bending moment: 150N.m
·Standard installation length: 650mm
·Standard stroke length: 500mm
·Size of outer tube: 80x50mm
·Motor: high-power motor by JIECANG
Surface: powder coating Standard colors: white, black, grey
Detailed Photos


Company Profile
DRIVE A BETTER AND HIGH-QUALITY LIFE Jiecang is committed to becoming the world's leading provider of linear drive solutions, creating smart and healthy emerging
technologies to help partners succeed and drive a better and high-quality life. Factory
Certifications
Exhibition
FAQ
FAQ
Q:What is the shipping port? A:Shanghai or Ningbo Port. Q:How can I get the quotation? A:You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc. Q:May I have a sample order before bulk one? A:Of course, we can provide a sample for you. Q:Do you get the relevant certifications? A:Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2015,ISO14001:2015,OHSAS18001:2007 and so on.

---
