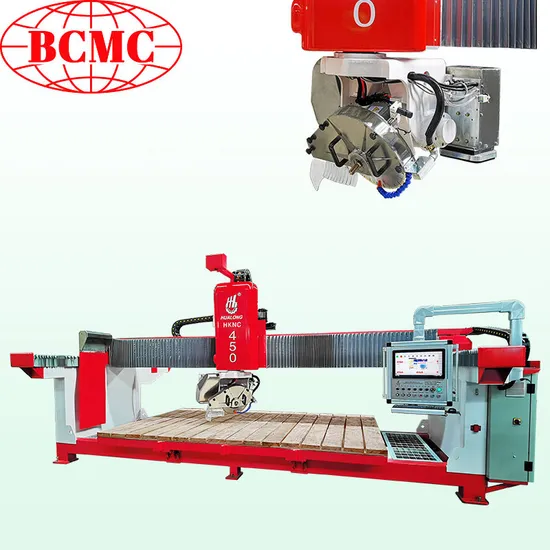

2025 Bcmc Automatic 5 Axis CNC Esa Control System Stone Bridge Saw Optional Accesories Multi-Function Granite Cutting Machine

Product Description

BCMC Machinery BCNC-450. This is a kind of new generation light weight stone cutting machine. Equipped with the world famous italian CNC control system and already installed CAD, CAM software. Qualified in stone processing and shaping. The machine is controlled by easy operation and interactive touch screen computer. Make your stone cutting and shaping process easy and efficient.
Main Features: 5 axes interpolated control. Big touch screen CNC control system. Easy to control. Photograohing camera equipped. Helps for slab positioning and typesetting. Save time and reduce the waste of processing. Vacuum lifter equipped. Easy moving slabs for cutting and processing. Milling cutter for doing the hole drilling and sink cutting work. Multifunctional processing function which can doing the complex work of cutting, milling, drilling and carving and even the curved surface processing. Cutter head can tilt in 90 degrees vertical and rotate in 360 degrees horizontal. Handling chamfer cutting at any angles automatically. Work bench can tilt in 85 degrees and all around rotate for easy slab loading and changing. Easy for loading, unloading and installation due to the monobloc structure. USB and WIFI connection. Easy to connect and upload your CAD/CAM files to the machine. Paremeters:

Diameter of saw blade	mm	ø350-ø450
Dimension of working platform	mm	3300x2000
Max. cutting length	mm	3300
Max. cutting thickness	mm	140
Max. lifting stroke	mm	250
Max. lifting weight by sunction cups	kg	200
Power of main motor	kw	15
Power of cutter frame reciproctating motor	kw	2
Power of crossbeam shifting motor	kw	1.1
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	0.85
Gross power	kw	16
Water consumption	m3/h	2
Gross weight	kg	4000
Dimensions (L x W x H)	mm	5700x3260x2765

Detailed Information For Spare Parts:
Control system
Itlian ESA CNC control system with touch screen for computer setting and controlling easily and visiable. Make your complicated work easily and high effficience. No need to switch from PC to machine frequently.
Digital Servomotor
Itlian ESA digital servomotor. Using a kind of permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with ESA CNC control system, creates a reliable controlling power for X, Y, Z, A and C axes.
Electro-spindle
High quality Electro-spindle controlled by an inverter allowing the adjustment of revolutions from 0 to 6000 rpm, so granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Electric Cabinet
Using the branded electric component as ESA, Schnider, Sanch to ensure the stable performance.
Linear Guide
Hiwin linear guide used on crossbeam and carling for high precision of cutting and long lifespan.

Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Vacuum Lifter
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Application:
* 3D decorative wall panels
* Countertops
* Cut curves and contours
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
