High-Efficiency Mixer for Perfect Mushroom Substrate Blending

Product Description

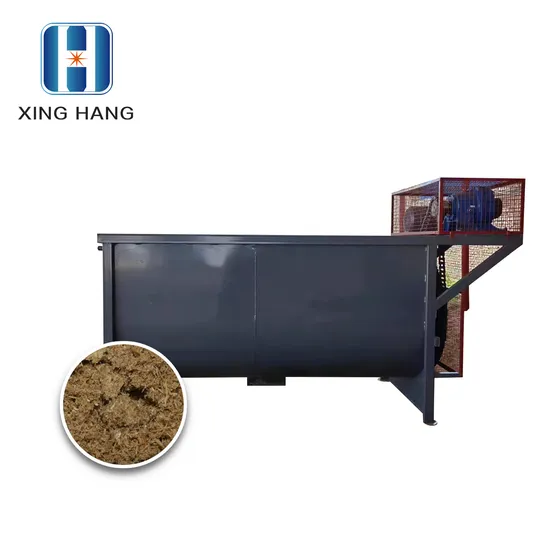

Product Description Large Mushroom Material Mixer The mixer is made of carbon steel plate, coated with anti-rust paint and gray finish paint, the board thickness is 5mm, the built-in twisted-dragon, the material is manganese steel, the maximum activity gap is 5mm, so that the raw materials are fully stirred. Primary mixer with water pipe, secondary mixer with vibrating screen, can be customized according to customer output equipment model.

The function of the mixer

Uniform mixing of materials, using CNC control, automatic water addition, automatic counting, automatic mixing, automatic conveying, and automatic material return to make the culture material more uniform.

Advantages of a blender

1. Efficient mixing: It can fully mix edible mushroom materials such as sawdust, corn cobs, and cottonseed hulls in a short period of time, improve work efficiency, and meet the needs of large-scale production.
2. Uniform mixing: Through a specially designed mixing structure and method, the internal edible mushroom powder can be quickly mixed evenly, thereby improving the mixing efficiency.
3. Save manpower: Replace manual mixing, reduce labor intensity for workers, and save labor costs.
4. Convenient operation: Operators can easily set mixing parameters, such as mixing time, speed, etc., and start and stop operations are convenient. Product Parameters

Model	External dimensions	Mixing bin size	Motor power	Weight
1.5 cubic	2650x1100x1400mm	1500x1000x1300mm	4KW-4 Poles	1540Kg
2.5 cubic	2740x1200x1400mm	1990x1100x1500mm	5.5KW-4 Poles	1750Kg
4.5 cubic	3520x1400x1600mm	2785x1300x1600mm	11KW-4 Poles	2000Kg
6.5 cubic	3700x1500x1800mm	3000x1400x1800mm	11KW-4 Poles	3000Kg
8 cubic	4260x1610x2230mm	3310x1510x2000mm	18.5KW-4 Poles	3437Kg
10 cubic	4300x1900x2670mm	3316x1800x2100mm	18.5KW-4 Poles	3760Kg
12 cubic	4420x2000x2260mm	3436x1900x2200mm	18.5KW-6 Poles	4700Kg
15 cubic	4775x2120x2400mm	3816x2000x2400mm	22KW-6 Poles	5420Kg
21 cubic	5690x2320x2500mm	4515x2200x2500mm	37KW-6 Poles	6768Kg

Detailed Photos

The working principle of the mixer

The auger pushes the edible mushroom material to move axially and rotate radially simultaneously. Due to the horizontal arrangement of the auger shaft, the material undergoes axial displacement and radial rolling, resulting in uniform mixing of the material.

Production process

Mixing → Conveying
Product show
