Agricultural Machinery Tractor Three Point Mounted Offset Hydraulic 28blades Heavy Duty Disc Harrow

Product Description

Product Description
SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
------The drafting Unit of the Chinese Standard For Disc Harrows And Disc Ploughs

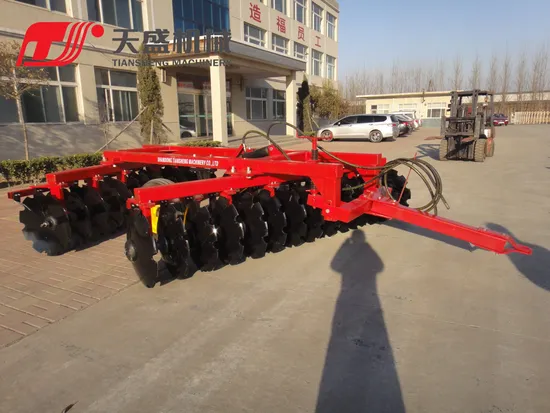

1BZ SERIES OF HYDRAULIC HEAVY DUTY OFFSET DISC HARROW
The disc spindle is based on the principle of traction farming. The set of concave discs is used as a working component. The insert blade edge plane is perpendicular to the ground and can be adjusted at an offset angle to the unit's advancement direction. The insertion piece rolls forward, the cutting edge of the insertion piece cuts into the soil, cuts the grass roots and crop residues, and arranges the soil ridge to move along the concave surface of the insertion piece by a certain height and then shift. The operations of shallow ploughing and stubble after crop harvest, soil moisture retention in early spring and crushed soil after ploughing are also aimed at the cover planting operation after sowing of the aircraft. According to the configuration of the insertion group, it can be divided into three types: single-row type, double-row opposite type and so-called type.

Model	Unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0
Working width	m	1.8	2.2	2.5	3.0	3.4	4.0
Working depth	mm	120-200	120-200	120-200	120-200	120-200	120-200
No. of discs	pcs	16	20	24	28	32	36
Disc diameter	mm	660	660	660	660	660	660
Weight	kg	1100	1250	1350	1450	1550	1700
Tractor power	hp	70-85	80-90	85-100	90-120	120-150	140-160

Detailed Photos
Company Profile
After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
