US$1,700.00
100-199 Pieces
Basic Info.
Graphics Card
Integrated Graphics Card
Built-in Bluetooth
Built-in Bluetooth
Built-in 3G Module
Built-in 3G Module
Fingerprint
Without Fingerprint
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
60.00cm * 50.00cm * 40.00cm
Package Gross Weight
2.850kg

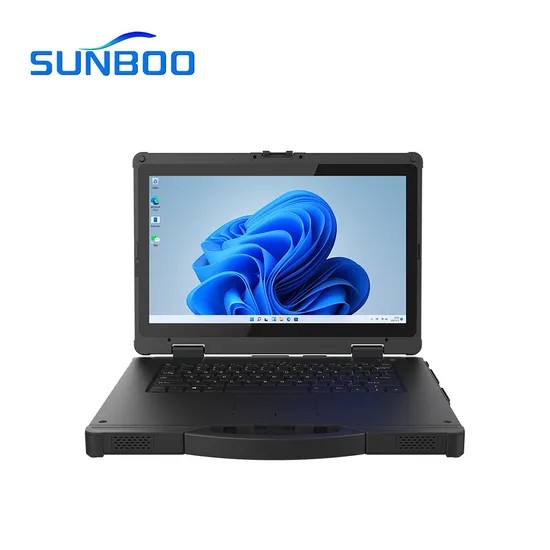

Product Description
Performance
·11th Gen® Intel® Core™ i5/i7 processor
·New Intel Iris® Xe core graphics card
·Support Windows 10 OS, Optional Windows 11 OS
Communication
·High speed Wi-Fi 6
·Support M.2 interface 5G/4G selection
·Bluetooth 5.1 for higher transfer speeds
Function
·14-inch FHD, Optional touch screen
·Rich interfaces and extended function can meet various needs
·6300mAh/7.4V+1750mAh/7.4V dual battery, Large battery
support hot-swappable
Reliability
·Press fingerprint identification
·IP65 high protection level, 1.22m fall resistant
·In accordance with MIL-STD-810G
| Basic parameters |
| Dimension | 363.2 x 287.4 x 42.1mm |
| Weight | device unit 2850g |
| Device Color | black |
| LCD | 14 inch FHD 16:9, 1920x1080, 700nits |
| Touch Panel | Optional 10 point G+G capacitive touch screen Corning® Gorilla® Glass |
| Camera | Front 2.0MP |
I/O | HDMI x 1, POGO 5pin x 1,
USB 2.0 Type-A x 1, USB 3.0 Type-A x 3, SIM Card x 1, SD Card x 1,
DB9 RS232 × 1, RJ45 × 2,
Φ3.5mm standard earphone jack x 1,
DC 19V 3.42A x 1
Passenger transfer card PCIE X4 solt or HDD x 1 (Optional) |
| Power | AC100V ~ 240V, Output DC 19V/3.42A/65W |
| Battery(Built-in) |
| Capacity | 7.4V/1750mAh |
| Type | Built in Li_polyment,battery loadable |
| Endurance | 0.5hrs (Default 50% volume,default 200 nit, Play 720P HD video) |
| Battery(Hot-swappable) |
| Capacity | 7.4V/6300mAh |
| Type | Li_polyment, removeable battery |
| Endurance | 6.5hrs (Default 50% volume,default 200 nit, Play 1080P HD video) |
| Performance parameter |
| CPU | Intel® Core™ i5-1135G7/i7-1165G7 |
| OS | Windows 10, Optional Windows 11 |
| RAM | 8GB/16GB |
| ROM | 256GB/512GB/1TB |
| Communication |
| WIFI | WiFi 6,802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1 |
| 2G/3G/4G (Optional) | LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: B3/B8 |
5G
(Optional) | 5G NR:n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/ n66/n71/n77/n78/n79 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48
LAA:B46
WCDMA:B1/B2/B3/B4/B5/B6/B8/B19 |
| GNSS | Built-in GPS, Optional GPS+Beidou |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
Rugged
Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.22m |
| Data Collection |
| Fingerprint | SPI fingerprint (power on login) |
| NFC | Optional |
