55W 180 Degree Beam Angle LED Corn Light Outdoor Retrofit LED Street Light Hot Selling E26 E27 E39 E40 Garden LED Street Lamp

Product Description

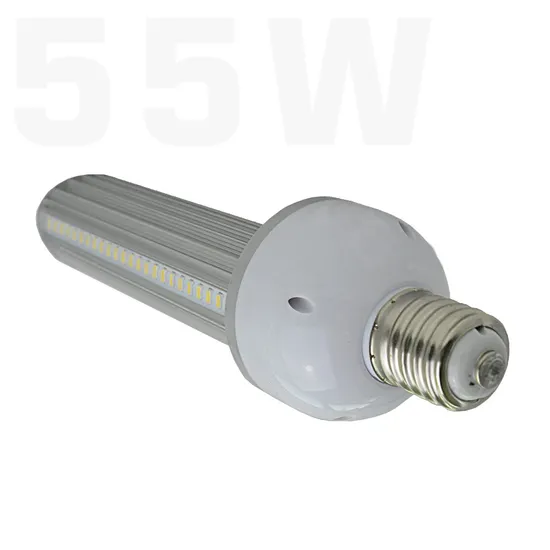

55w 180 Degree Beam Angle LED Corn Street Lamp
Product Description
Our factory produce LED corn lights from 12W-175W used for traditional 75w-1000w Metal halide lamps/ high pressure sodium lamps retrofit. Mostly for Post top, Floodlight, Wall pack, Cobra heads, High bay luminaries.
Below 12w-175w led corn bulbs different models:
LED corn bulbs data sheet:

Power	Luminous efficiency	Lumen	Electrical Parameters	Product Dimension
12W	125Lm/w	1,500Lm	Input voltage: AC90-277V, 50/60Hz CRI: Ra80 CCT: 2200K-6500K PF: >0.95 Suger protection: 4KV Base: E26/E27/E39/E40 IP65 Work temperature: -20ºC ~ 55ºC	Φ64mm x L155mm
16W	125Lm/w	2,000Lm		Φ64mm x L165mm
20W	125Lm/w	2,500Lm		Φ64mm x L185mm
24W	125Lm/w	3,000Lm		Φ64mm x L205mm
27W	125Lm/w	3,375Lm		Φ93mm x L204mm
36W	125Lm/w	4,500Lm		Φ93mm x L234mm
45W	125Lm/w	5,625Lm		Φ93mm x L265mm
54W	125Lm/w	6,750Lm		Φ93mm x L275mm
24W	160Lm/w	3,840Lm	Input voltage: AC90-305V, 50/60Hz CRI: Ra70, Ra80 CCT: 2200K-6500K PF: >0.9 Suger protection: 6KV, 10KV Base: E26/E27/E39/E40 IP54 Design for 100% enclosed fixture Work temperature: -40ºC ~ 55ºC	Φ70mm x L135mm
35W	160Lm/w	5,600Lm		Φ70mm x L175mm
50W	160Lm/w	8,000Lm		Φ70mm x L195mm
80W	160Lm/w	12,800Lm		Φ70mm x L205mm
100W	160Lm/w	16,000Lm		Φ99mm x L210mm
125W	160Lm/w	20,000Lm		Φ99mm x L210mm
150W	160Lm/w	24,000Lm		Φ99mm x L210mm
175W	160Lm/w	28,000Lm		Φ99mm x L210mm

Features: > Beam angle 180°/360° for all type fixture. > Mainly replaced HID, CFL, HPL, SON, MHL, and incandescent traditional lamps. (High Pressure Mercury lamp, High Pressure Sodium lamp, Metal Halide Lamp) > 12W-175W optional to replace 75w-1000w MHL/HPS. Especially used for Post top, High bay, Floodlight, Street Light fixtures. > E26, E27,E39 or EX39 base available > Flame retardant material > Life Span: 50000 hours, @25°C > 5 years warranty.
Electrical: > Self design internal led drivers with high quality components > Power: 12W-175W optional.
> Direct wire rang voltage AC90~305V.
> Power Factor : >0.95 > Power efficiency: >90% > 6KV, 10KV suger protection Optical: > High bright 2835/3030 LEDs, 125-160lm/W. > CCT 2200K-6000K optional, other color customized. > CRI: Ra80 > Bean angle 180°/ 360° available
MHL/HPS Replacement:
Choose the right LED bulbs for your project:

Power	Luminous efficiency	Lumen	Equal Replacement
12W	125Lm/w	1,500Lm	CFL: 18W, 23W, 45W
16W	125Lm/w	2,000Lm	CFL: 55W, 65W
20W	125Lm/w	2,500Lm	CFL: 55W, 65W, HPL: 80W, SON: 50W
24W	125Lm/w	3,000Lm	CFL: 65W, 105W, HPL: 80W, SON: 50W, 70W
27W	125Lm/w	3,375Lm	HPL: 80W, 100W, SON: 50W, 70W
36W	125Lm/w	4,500Lm	HPL: 100W, 125W, SON: 70W, 100W
45W	125Lm/w	5,625Lm	HPL: 100W, 125W, SON: 70W, 100W
54W	125Lm/w	6,750Lm	HPL: 100W, 125W, 250W, SON: 70W, 100W, 150W
35W	160Lm/w	5,600Lm	HPL: 100W, 125W, SON: 70W, 100W
50W	160Lm/w	8,000Lm	HPL: 125W, 250W, SON: 70W, 100W, 150W
80W	160Lm/w	12,800Lm	HPL: 250W, 400W, SON: 150W, 250W, MHL: 175W, 250W
100W	160Lm/w	16,000Lm	HPL: 400W, SON: 250W, MHL: 250W
125W	160Lm/w	20,000Lm	SON: 250W, 400W, MHL: 250W, 400W
150W	160Lm/w	24,000Lm	SON: 250W, 400W, MHL: 400W
175W	160Lm/w	28,000Lm	SON: 250W, 400W, MHL: 400W, 1000W

Application:
Used for flood light, cobra head fixture, wall pack luminaire, shoe box, buck head and outdoor lighting fixtures.
Installation Instructions
Company Profile Shenzhen Focus Lighting Co., Ltd. is specializing in LED lighting. We have a R&D team with experienced and professional, and perfect testing instruments and equipment to make products form R&D, production, testing, to the final delivery, formed a complete set of produce quality control system.
We mainly produce LED track light,LED downlight,LED PAR light commercial and industrial lighting Since 2010, we have rich experience in LED Lighting OEM, Especially to design LED driver satisfy special functions required by customers.Our products have been exported to Europe, America, Britain, Canada, Australia, Singapore and other countries, and our products have been recognized by the market.
Shenzhen Focus Lighting persists the business concept of "customer utmost, quality first, human based and business trust". We wish to have a better future with our clients.
FAQ Q: What's your MOQ? Can I order one piece to test?
A: Yes, MOQ=1pcs. Sample test available.
Q: What about the lead time?
A: <50pcs, we can ship in 5-7 workdays after payment made. 50-500pcs, we can ship in 10-12 working days after payment made.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Ship air to door takes around 15 days.
Q: What happens if my product failures?
A: The product failure rate is around 0.3%. If the products are damaged during transportation or test broke, we will replace new lights to you.
Q: Are you a trader or factory?
A: Yes, we produce LED lighting since 2010 and mainly sold in China. From 2012, we began to produce and export LED lighting.
Q: Can I visit your factory? Where is your factory located?
A: Yes. We are located in Shenzhen city, welcome to visit our factory.

---
