Laboratory Autoclave/High-Pressure Reaction Zero Leakage Chemical Equipment Machinery with Magnetic Coupling Seal

Product Description

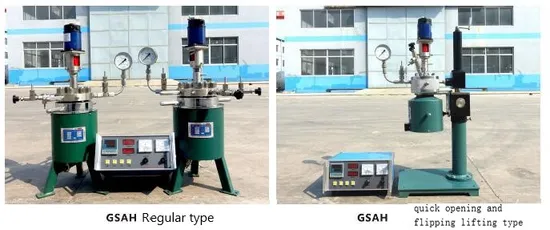

The quick opening and flipping lifting type is a product that is further optimized on the basis of the conventional type. A snap ring quick opening structure is used between the kettle cover and the kettle body, which allows for easy opening or lifting of the kettle cover and horizontal rotation of the kettle body for material pouring. This thoroughly discharges the material inside the kettle, reduces labor intensity, and improves work efficiency.

MODEL	GSHA-0.25L	GSHA-0.5L	GSHA-1L	GSHA-2L	GSHA-3L	GSHA-5L
CAPACITY	0.25L	0.5L	1L	2L	3L	5L
WORK PRESSURE MPa	-0.1-10.0	-0.1-10.0	-0.1-10.0	-0.1-10.0	-0.1-10.0	-0.1-10.0
WORK TEMPERATURE C°	300	300	300	300	300	300
rpm	0-1000	0-1000	0-1000	0-1000	0-1000	0-750
DC motor power W	123	123	123	123	123	355
Electric-heating power KW	0.8	1	1.5	2	2.5	4
Control system	The power supply is 220V, equipped with a high-precision PID controller (automatic or manual control), with a control accuracy of ± 1.5C °. It has functions such as temperature setting, temperature display, speed display, stepless speed regulation, adjustable heating power, etc. It is equipped with power/heating wires, motor wires, speed measuring wires, PT100, etc.
Main materials	Stainless steel S30408/S32168/S31603,S39042,Titanium materials, duplex steels, fetters, Hastelloy alloys, zirconium materials, Monel materials, etc.
Heating form	200V electric heating, non-standard design of jacket thermal oil electric heating and jacket circulating heating according to requirements
Mixing form	Flat blade, folding blade, propulsion type, three blade propeller type, turbine self suction type, disc inclined blade, anchor type, screw belt type, etc., standard configuration is propulsion type
Application	Catalytic hydrogenation, high-pressure reactions, agrochemical pesticides, hydrothermal synthesis, hydrometallurgy, polymerization condensation, aluminum tin oxide, petrochemicals, fluorination oxidation, deep cooling, etc
Shaft sealing form	Magnetic coupling driven static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly
Remarks	0.5L, IL, and 2L are the best for quick opening flip type, but 3L and 5L are not recommended; The conventional 2-5L for ultra-high temperature and ultra-high pressure is suitable. Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs.

LUHAO Chemical Machinery Co. Ltd

Pressure Vessel Design Information Collection Form

Vessel

Jacket (Coil)

Work Medium

Name

Components

Density (Kg/m³)

Characteristics

Viscosity (cP)

Flow Velocity(m³/h)

Design pressure (Mpa)

Work pressure (Mpa)

Design temperature(ºC)

Work temperature (ºC)

Wall temperature (ºC)

Diamter (mm)

Length (mm)

Capacity(m³)

Effective capacity (m³)

Corrosion allowance (mm)

Corrosion speed (mm/year)

Recommended Materials

Lowest value of average monthly temperature(ºC)

Site location

Installation condition

Indoor Outdoor

Catalyst Volume(m³)

Catalyst Density(Kg/m³)

Heat Transfer Area()

Coil Specification

Basic Wind Pressure(Mpa)

Seismic Basic Intensity

Ambient Temperature(ºC)

Site Type

Operating Mode

Insulation Materials

Name

Thickness

Density (Kg/m³)

Seal Requirements

Liquid Level Gauge

Emergency Cut-off

Static Electricity Removal

Anti Eddy Current Requirement for Liquid Outlet

Installation and Mantainance Requirements

Expected Useful Life (years)

Safety accessories

Vessel

Jacket (Coil)

Location

Type

Specification

Quantity

Set pressure(Mpa)

Burst disc

Burst pressure(Mpa)

Safety discharge(kg/h)

Agitator

Type

Impeller Diameter(mm)

Speed(r/min)

Motor

Model

Power(kw)

Explosion Proof Grade

Speed reducer

Piping Table

No.

Dimension

Pressure

Connection Size Standard

Connection Surface Type

Function

a

b

c

d

e

f

g

h

j

k

Other Requirements if any

Kindly fill this form so that we can work out a quote for you.
