90 Kw 3-4t/H High Efficient Hammer Mill for Wood Chips

Product Description

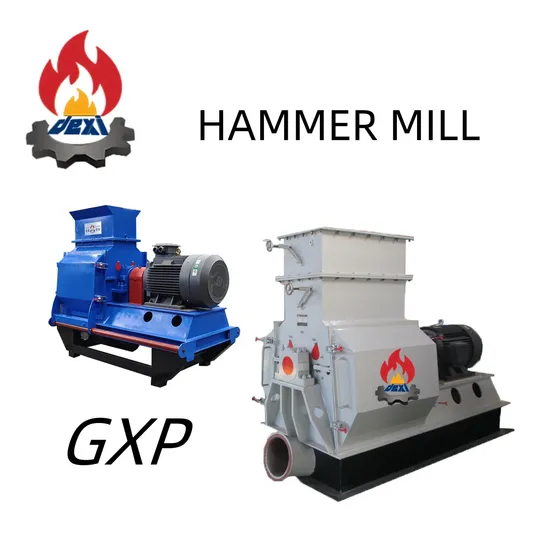

90 KW 3-4T/H High Efficient Hammer Mill for Wood Chips
Product Description
GXP series high efficiency hammer mill is mainly using for grinding different kind of biomass materials into powder size, such as wood chips, waste veneer, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.
Machine's Advantages:
1.The motor and rotor of this GXP industrial hammer mill installed on the same base. They are directly connected by coupling.
2.The rotor has been checked by dynamic balance test can rotate in both of forward backward direction.
3.The operation doors are helpful to change the sieve plate and hammers, also helpful for checking up and debugging.
4.The size of crushed material could be changed by changing different sieve plate with different hole.
5.Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc.
Product Parameters

Model	GXP65*27	GXP65*55	GXP65*75	GXP65*100	GXP80*100	GXP80*130	GXP80*100
Diameter of rotor(mm)	650	650	650	650	800	800	800
Width of studio(mm)	275	550	750	1000	1000	1300	1000
Rotate speed (r/min)	2950	2950	2950	2400	2400	2400	1280
Spec of hammer(mm)	180×50×5	180×50×5	180×50×5	180×50×5	180×50×5	180×50×5	180×50×5
Qty of hammer(pie)	24	48	72	96	96	118	144
Related power(kw)	22	55	75	90/110	132/160	160/185	220/160
Output(t/h)	0.5-1	1-2	2-3	3-4/3-5	4-6/5-7	5-7/6-8	8-12/10-12

Spare Parts
Different size of sieve (screen) of hammer mill in our warehouse

Hammers with anti-wearing alloy materials at the outside.

Application:
Certifications
Simple Production Line

---
