Basic Info.
Number of Stator
Single-Phase
Function
Driving, Control
Casing Protection
Protection Type
Certification
ISO9001, CCC
Protect Feature
Drip-Proof
AC Voltage
208-230 / 240 V
Transport Package
Carton or Pywood Case
Production Capacity
50000 PCS/ Month
Product Description

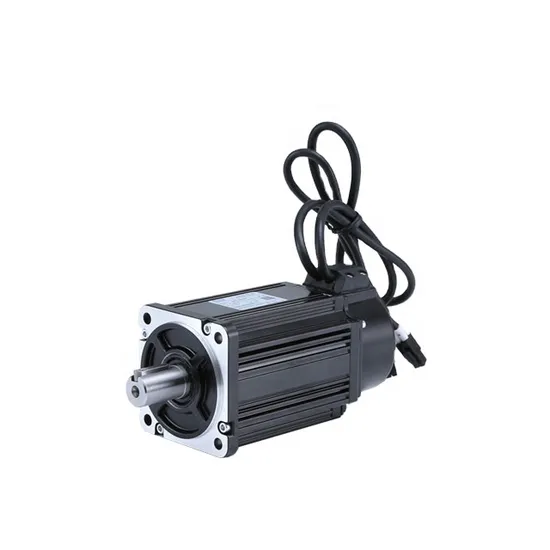

MiGE 80mm 750w TAMAGWA encoder Servo Motors
Product Description
| Motor model | 80ST-M02430 |
| Rated power(kw) | 0.75 |
| Rated voltage(v) | 220 |
| Rated current(A) | 3 |
| Rated speed(rpm) | 3000 |
| Rted torque(N.m) | 2.4 |
| Peak torque(N.m) | 7.1 |
| Voltage constant(V/krpm) | 48 |
| Torque coefficient(N.m/A) | 0.8 |
| Rotor inertia(kg.m²) | 1.82*10-4
|
| Line-line resistance(Ω) | 2.88 |
| Line-line inductance(mH) | 6.4 |
| Electrical time constant(MS) | 2.22 |
| Weight(kg) | 1.78 |
| Encoder line number(PPR) | 2500 |
| Insulation class | Class F |
| Safety Class | IP65 |
| The opretating of Environmental conditions | -20°c ----+40°c,below 90%RH No dewing |
| | |
| | |
| | |
Company Information
Packaging & Shipping
Our Services We can design according to clients' requirements, and we provied maintenance services.
Other special requirements could contact with our technology to negotiate.
FAQ Q1. Are you factory?
Yes, we are factory and we produce stepper motor/driver, Servo motor/driver and spindle servo motor for more than 14 years in China. MIGE is our registered brand.
Q2. What are your products can be use to?
A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, textile machine and so on.
Q3: What kind of shipping methods do you use?
A:1)For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shippinga shipment is recommended .
Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK .
For mass production , the lead time depend on the quantities you need .
Q5: What is your warranty time?
A:12 months. And we provide life-long technical service and after-sale service.
