Pnmf Series Waste PP PE LDPE PVC Pulverizer Powder Macking Machine

Product Description

PNMF Series Waste PP PE LDPE PVC Pulverizer Powder Making Machine
Application Areas:
The PNMF series automatic plastic mill is disk-type plastic pulverizer, which has the advantages of high capacity and low-power, This machine can be used for powder processing of PE, HDPE, PP, PS, ABS, EVA, PET, nylon,SPC and other materials.
PNMF series plastic shredders can process powder sizes up to 20-120 mesh.
Description:
The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
Technical Features:
1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
7. The mill use the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Advantages
Simple adjustment of cutting gap
Choice of discs or segments
Low drive power - High throughput
Innovative efficient design
Wide range of accessories
Easy temperature control
Specifications

Model	PNMF-300	PNMF-400	PNMF-500	PNMF-600	PNMF-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5kw	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Air Lock Motor (kw)	0.75	0.75	0.75	0.75	0.75
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

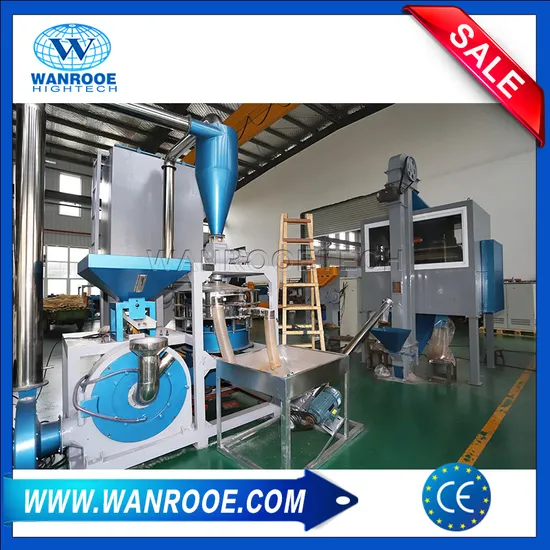

Factory Photos:

Customer Feedback:
Our Service
1. One year guarantee for the whole machine
2.24 hours of technical support
3. Our engineers can provide services overseas. The service is free, but the charge of round air-tickets, food, and the hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training services which help operators handle the machine well.

---
