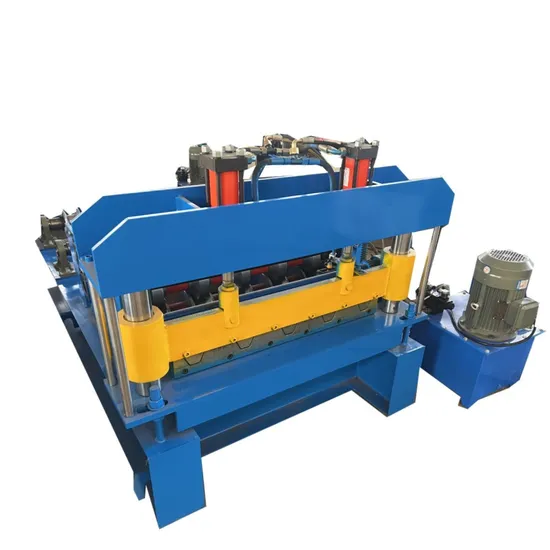

Automatic Custom Metal Roofing Sheet Crimping Hydraulic Curving Machinery Roof Panel Bending Bull Nose Roll Forming Machine

Product Description

Automatic Sheet Bending metal Crimping sheet Curving Cold Roll Forming Machine With High Speed
Product introduction
Technical parameters:
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 4 kw
(4) Pump power: 4kw
(5) Shaft diameter: 75mm and solid forming shaft
(6) Forming steps: 15 steps.
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 350H steel
(9) Medium plate thickness: 18mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(12) 0veral sized:about 6800mm*1500mm*1500mm
Company Introduction :
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
After-sale
we have a detailed instruction manual and video tutorials, or by phone, online technical support for customers. True partnership will not end at the time of delivery, we are convinced that satisfactory after-sales service is very important.
Warranty:
Whole life maintenance,Lifelong technical support;
During 12 months all parts damaged because of quality problem will be changed for free.

---
