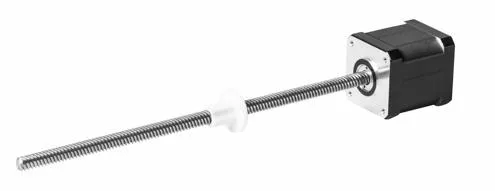

NEMA 17 2 Phase Electric Linear Stepper Motor Actuator with Ce Certificated

Product Description

Note:
The specifications can be designed according to the customer's requirements!
Applications:
Machine vision inspection equipment, Medical equipment, Semiconductor processing device, Industrial automation, advertisement instrument, etc.
Parameters:
Electrical Specifications

Series Model	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Lead Wire (No.)	Holding Torque (N.cm)	Motor Length L (mm)	Step Angle (°)
HL426-03428	1.3	2.4	3.5	4	28	34	1.8
HL426-04040	1.7	1.5	2.8	4	40	40
HL426-04050	1.7	1.8	3.2	4	50	48
HL426-04834	0.4	30	28	6	34

Screw Specification

Code	Diameter ΦD	Linear travel per step	Step
631	Φ6.35	0.0079	1.59
632		0.0158	3.17
634		0.0315	6.35
081	Φ8	0.01	2
082		0.02	4
084		0.04	8
The shaft length can be custom-made.

About Us:
As a manufacturer and Supplier, headquartered in Nanjing, I.CH is engaged in researching and developing different types of Servo motor, except for Hybrid Stepper Servo Motor, linear stepper motor, we also produce Brushless DC Servo Motor, AGV Servo Motor etc.last but not least, we can design customized Servo Motor for Client's need.
Certificate:
Customer's Visiting:
Service:
1, We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2, The delivery time is about 30-45 days.
3, One-year guarantee.
4, Technical support.
Work-flow:
Package:
Inside: High-density foam box
outside: hardboard carton box
FAQ:
1, How can we know the product quality?
We can provide some samples for you.
2, Factory or trader?
We have a factory and have a professional R&D team.
3, What is your after-sales services?
Professional solutions in installation and maintenance.
One-year Warranty.
4, Do you have the relevant certification?
All products are made according to ISO9001, CE requirements.
5, Is there cheap shipping cost to import to our country?
Yes, we have some partners.
6, Can I visit your factory?
Yes, glad to see you.

---
