Heavy Duty Factory Direct CNC Fiber Laser Cutter for Stainless Steel

Product Description

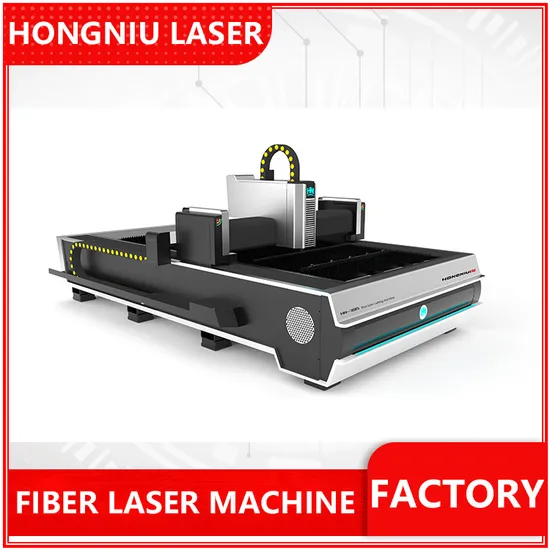

HONGNIU Heavy duty factory direct cnc fiber laser cutter for stainless steel
HN-3015C is a high-speed low-carbon steel cnc fiber laser cutting machine with a working speed of 3000*1500mm.It consists of machine tools, moving parts, electrical equipment control parts and other auxiliary parts.Operating the three-axis moving parts through the control system can drive the fiber laser cutting head to achieve stable,accurate and high-speed motion; The X and Y axis of the aluminum stainless steel sheet cutting machine adopts original imported high-quality high-precision HIWIN/PEK linear guides and worktables It adopts round tube welding machine, stress-relieving annealing treatment, and the maximum load-bearing table can reach 500 KG. It also has universal ball bearings, a peripheral clamping device set outside the machine, a fully enclosed dust-proof device, photoelectric sensor and other precise Position the components to ensure the accuracy of the transmission.
(1).High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2).Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3).High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4).High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5).The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6).The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7).It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8).Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Product Parameters

Equipment Specification
Model	HN-3015C	HN-4015C	HN-4020C	HN-6020C
Cutting Area	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm
Laser source	Raycus/IPG/WSX	Raycus/IPG/WSX	Raycus/IPG/WSX	Raycus/IPG/WSX
Max Moving Speed	100m/min,Acc=1.5G	100m/min,Acc=1.5G	120m/min,Acc=1.5G	120m/min,Acc=1.5G
Position Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Reposition Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V/220V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading(KG)	≤4000	≤5000	≤5500	≤6000

About Shandong HONGNIU Laser Equipment Co., Ltd.
Hongniu Laser's production equipment mainly includes: laser cutting machine, ultra-high power laser cutting machine, integrated plate and tube laser cutting machine, automatic loading and unloading laser tube cutting machine, handheld laser welding machine and other equipment. The annual output can reach more than 8,000 units, and the products are sold in 160 countries and regions. Has served 50,000+ corporate users. The equipment processes products with high precision, smooth cutting, fast speed and higher productivity. We have a complete after-sales service system, and we have the strength to promise to provide new and old customers with high-quality and cost-effective laser cutting machine equipment The company covers an area of 30,000 square meters, including 20,000 square meters of standardized workshops More than 100 acres, a single standardized factory building of 20,000 square meters Total number of employees: more than 200 people, of which technical personnel account for more than 80%.
Our product
HN-3015C Fiber Laser Cutting Machine Configurations advantage
1.Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3.X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4.Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
Exhibitions
Certifications
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness.
Q: If we need HONGNIU technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.
Q:Why does the machine price not include fiber sources and tube components?
A:Because you can customize the generator, rotary and other configurations, the price is the base bed price.

---
