Handheld Portable Pump Sucks Odorous Gas High-Precision Concentration Detector Gas Leakage Alarm Nh3 H2s Gas Detector

Product Description

introduce

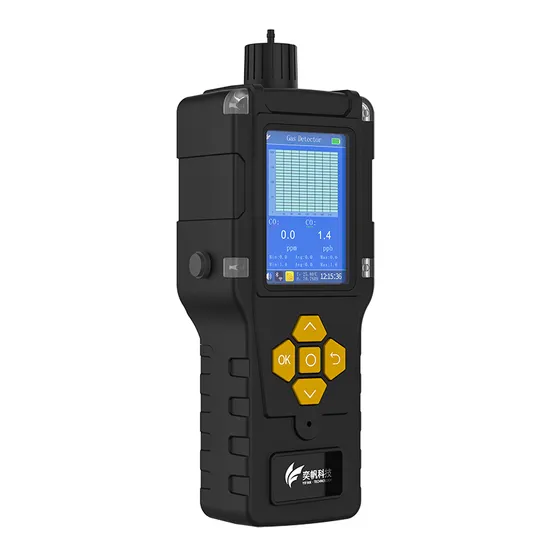

YF-8200 series handheld pump suction gas detector. The detection principle is that when the target gas is pumped into the gas sensor, the sensor will immediately emit an induction. Sensors generate electrical signals based on the concentration of gas. After being amplified by the circuit, the signal is processed by the CPU through AD sampling, temperature compensation, and intelligent calculation to output accurate concentration data. It can also output Bluetooth or WIFI communication signals. By collecting these signals and connecting them with mobile phones, printers, and cloud platforms, sound and light alarms, vibration alarms, and alarm screenshots can be generated.
Adopting waterproof design, it meets the requirements for use in harsh environments. Adopting pump suction sampling measurement and equipped with high-quality gas sensors, it has high sensitivity. The instrument is controlled by an embedded microcomputer, with simple operation, complete functions, high reliability, and multiple adaptive capabilities. It uses a graphic and textual LCD display, which is intuitive and clear. English display interface, customizable language.
Product Features
The sensor channel can select different gases
1.Three proof design, waterproof, dustproof, and explosion-proof
Using high-quality gas sensors for accurate measurement
2. 3.7-inch color screen, real-time data is intuitive and prominent
3. Four fold alarm function, including sound, light, vibration, and screen display
4. Metal back clip, easy to temporarily place or clip on the body
5. Personalized design, display parameters can be adjusted according to habits
6. Built in 5000mAh lithium battery, supporting long-term operation
Equipped with a small built-in air pump, it can fully absorb the gas in the test area
Adopting the latest human-machine operation screen system, the operation is simple Built in Bluetooth, WIFI can synchronize data with the phone 7. Can connect to Bluetooth printer, Bluetooth can switch between host and slave
8. Alarm screenshots can be set up, and the images can be directly imported into the computer or transferred to the mobile phone
9.The pump speed can be set to high and low levels, and configured according to the site
10.High memory storage chips can store historical data, alarm data, and calibration data
11.The mobile phone has an APP software to control the device
12.Built in Chinese English switching (customizable for other foreign languages)
13.The data is presented in tabular format everywhere and can also be viewed on mobile phones Product Parameters

Charging voltage:	5V (USB charging)	Gas type:	Customized according to requirements, optional
Battery voltage:	3.7V	Gas range:	0~10ppm, 0~100ppm, 0~1000ppm, 0~10000ppm (range optional)
Charging current:	1A	Resolution:	0.001ppm, 0.01ppm, 0.1ppm, 1ppm (resolution optional)
Battery capacity:	5000mAh	Repeatability:	≤± 2% FS;
Charging time:	>5 hours	Zero drift:	≤± 1% FS/6h;
Working hours:	>12 hours	Span drift:	≤± 1% FS/6h;
Working power:	<0.5W	Linear error:	≤± 1% FS;
Sensor type:	electrochemical or PID;	Output methods:	Bluetooth, WIFI, USB
Sampling method:	pump suction	Alarm method:	Sound and light alarm Display screen: TFT color screen
Corresponding time:	<10 seconds (T90)	Working temperature:	-30~60 degrees;
Measurement accuracy:	≤± 3% FS;	Working humidity:	0~100% RH (no condensation)
