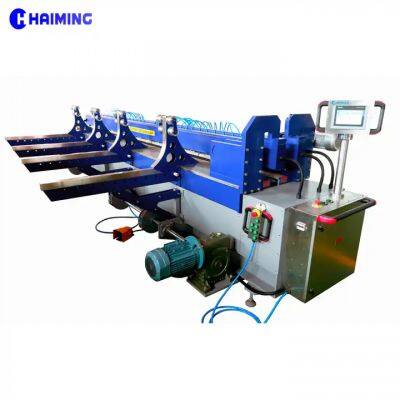

Guangzhou Factory Price Butt Welding Machine
Features
S-PH3000A- J-C can be operated horizontally , circular and vertically, which allows to perform different types of weld (horizontal, circular and vertical joints). The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process.Otherwise according to the user’s needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld. Each welding cycle is automatically memorized.
Welding types: horizontal, 90 degrees (on request), circular (on request),S-PH3000A- J-C is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF….
The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
Control system Siemens PLC, 7-inch color touch screen.
Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
3mm-30mm welding capabilities, special welding thickness of up 40 to 60mm.
Range of Application
Manufacturing water tanks and containers, plastic devices, ventilation systems, water treatment systems,Scrubber, environmental technology, swimming pool, transportation and logistics.
Technical Data
Model
| S-PH3000A-J-C
| S-PH4000A-J-C
| S-PH6000A-J-C
|
Machine Length (mm)
| 4300
| 5300
| 7500
|
Machine Width (mm)
| 1900
| 1900
| 1900
|
Machine Height (mm)
| 1100
| 1150
| 1200
|
Total Weight approx. (kg)
| 3200
| 4000
| 6400
|
Air pressure
| 8,0 bar
| 8,0 bar
| 8,0 bar
|
Source de courant
| 3800
| 3800
| 3800
|
Heating element power(KW)
| 4
| 5
| 8
|
Reel motor power(KW)
| 3
| 3
| 4
|
The heating element size (mm)
| 3200 X22 X55
| 4200 X 22 X 55
| 6200 X 22 X 55
|
Welding materials
| PP PE PVDF...
| PP PE PVDF...
| PP PE PVDF...
|
Welding area lighting
| LED
| LED
| LED
|
Weld thickness(mm)
| 3-30
| 3-30
| 3-30
|
Welding Length(mm)
| 3025
| 4025
| 6025
|
Minimum diameter of pipe(mm)
| 360
| 480
| 580
|
90 °vertical weld length(mm)
| 3025
| 4025
| 6025
|
90°vertical weld thickness
| 6-40
| 6-40
| 6-40
|
Why choose us ? :
1. Our equipment has strong competitiveness,our equipment already ahead , ourdevice has the following characteristics:
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade. And our factory have many skilfully operation of workers and the stability of the scale of production. And we also have many outstanding engineers, they can help you design the machines you want.
3. Genuine products with excellent quality and competitive price.
4. Coperating with the customers all over the world and knowing the markets very well.
5. After-Services will be highly-satisfied. Any problems andfeedback will be answered in a short of time.
>>
