Film Blowing Machine Co-Extruder

Product Description

Product Description

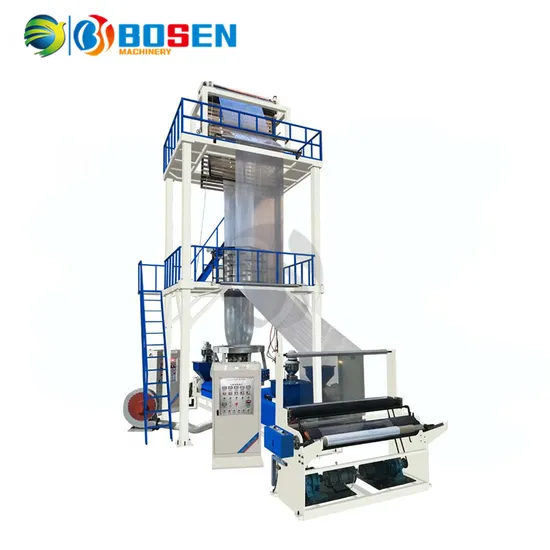

BSJ-2L800 Film Blowing Machine
It is used for blowing PE(HDPE LDPE LLDPE) film, which is widely used for water package bag , laminating film, packing film, agriculture film, film for textile, clothing bag,etc.
Detailed Photos
Product Parameters

Model	BS-2L600	BS-2L800	BS-2L 1000	BS-2L1200	BS-2L1500	BS-2L2000
Suitable Material	LDPE LLDPE HDPE
Max Film Width(mm)	600	800	1000	1200	1500	2000
Film Thickness(mm)	LD:0.02-0.15
Max Extrusion Output	60kg/hr	70 kg/hr	80kg/hr	90kg/hr	130kg/hr	180kg/hr
Extrusion unit
Gear Box	133×2	133×2	146×2	146×2	173×2	200×2
Screw Diameter(mm)	φ45×2	φ50×2	φ55×2	φ55×2	φ55×2	φ65×2
Screw L/D Ratio	28:01 /30:1
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	250W×1×2	250W×2×2	250W×2×2	250W×2×2	370W×2×2	370W×3×2
Thermo Control (zone)	3×2	3×2	3×2	3×2	3×2	4×2
Driving Motor (kw)	11×2	11×2	15×2	15×2	22×2	30×2
Extrusion Die
Die Size (mm)	LD:φ120	LD:φ180	LD:φ220	LD:φ250	LD:φ350	LD:φ500
Rotary Die Head	360°Continue Rotary
Air Ring	1PCS
Cooling Blower (kw)	2.2	3.7	4	4	5.5	7.5
Take-UP Unit
Roller Width (mm)	700	900	1100	1300	1600	2100
Take-UP Motor (kw)	0.75	1.1	1.5	1.5	1.5	2.2
Take-UP Speed(M/min)	5-60	5-60	5-60	5-60	5-60	5-60
Winding Unit
Type OF Winder	Surface Friction Double Winders
Roller Width (mm)	700	900	1100	1300	1600	2100
Winding Motor	10N.M	10N.M	12N.M	16N.M	1.5kw	1.5kw
Winding Speed(M/min)	5-60	5-60	5-60	5-60	5-60	5-60
Voltage	380V 50Hz 3PHASE
Cover Dimensions (m)	5.8×2.3×4.5	6×2.5×4.8	6.2×2.7×5.2	6.5×2.3×6.5	6.8×2.6×7	7×3.2×7

Certifications
Packaging & Shipping
Company Profile
FAQ
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.

---
