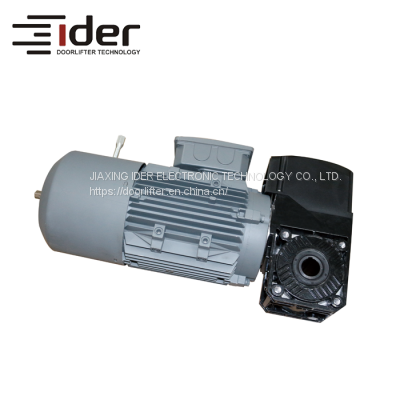

Industrial High-Speed Door Motor: GYJ40,GYJ50,GYJ60,GYJ70,GYJ80,GYJ100
Products Features:
1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5.The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7.The suitable working environment temperature is between -20 ℃~ 50 ℃, IP54 protection class with stable performance and safety.
8. Some customized special specifications for customer request.
Table of Performance Parameters for Fast Rolling Door-perators for Industrial Purposes:
Model
| GYJ40
| GYJ60
| GYJ50
| GYJ80
| GYJ70
| GYJ100
|
Input Voltage
| 220V/ 50Hz
| 220V/ 50Hz
| 220V/ 50Hz
| 220V/ 50Hz
| 220V/ 50Hz
| 220V/ 50Hz
|
Rated Power
| 800W
| 800W
| 1000W
| 1000W
| 1500W
| 1500W
|
Startup Torque
| 40N.m
| 60N.m
| 50N.m
| 80N.m
| 70N.m
| 100N.m
|
No-load Running Time
| 135r/min
| 90r/min
| 135r/min
| 90r/min
| 135r/min
| 90r/min
|
Supportive Power-contral
| GYK-93S-2
|
Diameters of the hole for output shaft
| Φ25mm
|
Retarding Mechanism
| Mechanism completely built with cooper worm wheels and worm rods
|
Lubrication
| Oil submerging
|
Thermal Protective Temperature
| 120ºC
|
Max. Limited Journey
| 20 rounds rotation of the output shaft
|
Ambient Temperature
| -20ºC~+45ºC
|
Working System
| S2-20min/ S3-80%
|
Noise
| ≤58dB
|
Protective level
| IP 54
|
Maximum door weight
| 25m²
|
Mode of supportive power-control
| Split type
|
Mode of manual chain
| Universal chain style
|
Swift release upon power failure
| Pull-rope release(optional)
|
Type of limit switch
| Absolute encoder of electronic limit Mechanism
|
Total weight
| 20kg
| 20kg
| 22kg
| 22kg
| 25kg
| 25kg
|
>>
