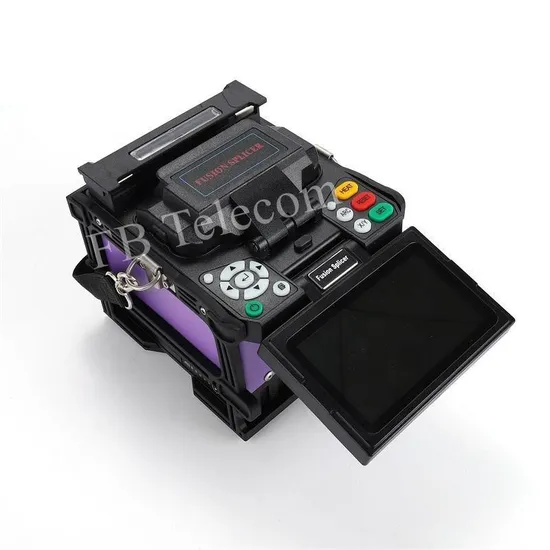

Manufacture 4 Motor Fiber Optic Splicer Machine Fiber Optic Fusion Splicer

Product Description

Manufacture 4 motor Fiber Optic Splicer Machine Fiber Optic Fusion Splicer
Product Description Features
*Small size and light weight *7s splicing and 26s heating
*4 motors accurate alignment technology
*Automatic & real-time ARC calibration
*250 cycles splicing & heating once charged
*Inductive heater, not heating without fiber *Apply to bare fiber, pigtail, drop cable etc. *Specially design for FTTH/FTTx projects
Detailed Photos
Product Parameters

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Fiber count	Single
Applicable fiber dimensions	Cladding diameter: 80 -150μm, Coating diameter: 160 - 900μm
Typical splice loss	0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	7 seconds
Typical heating time	26 seconds
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery
Power supply	Adaptor, input: AC100-240V(50/60HZ), output: DC13.5V
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s
Dimension	149mm(L)x120mm(W)x127mm(H)
Weight	1.90kg including battery
