Electro Hydraulic Synchronous CNC Press Brake Kcn-40032, Da69t, 6+1 Axes

Product Description

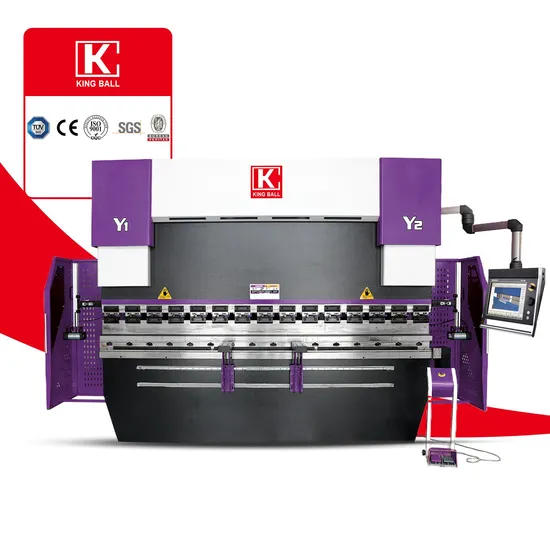

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-40032
6+1 Axes CNC Control(X,Y1,Y2,R,Z1,Z2,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; Z1,Z2: Left and right stopper movement
W: Worktable crowning(optional)
Main functions and features
*Overall welded and processed structure.
*Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
* Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
* Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
*Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
* Ram stroke(Y1, Y2),backgauge (X, R,Z1,Z2) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
*Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Technical Parameters

NO.	Item	Parameter		Unit
1	Nominal pressure	4000		KN
2	Table length	3200		mm
3	Max. Slider stroke	320		mm
4	Max. Shut height	580		mm
5	Between columns	2600		mm
6	Throat depth	400		mm
7	Main motor power	30		KW
8	Down Speed	100		mm/s
9	Pressing Speed	8		mm/s
10	Return Speed	85		mm/s
11	Control axes	X+Y1+Y2+R+Z1+Z2+W		/
12	X axes Stroke	500		mm
13	X axes Speed	250		mm/s
14	R axes Stroke	200		mm
15	R axes Speed	60		mm/s
16	Z axes Speed	100		mm/s
17	Backgauge Stoppers	3		/
		L	3700	mm
18	Overall dimension	W	2700	mm
		H	3400	mm
19	Machine weight	22000		kg

Detailed Pictures
Backgauge with ball screw and linear guide, high precision, fast speed and low noise
Double sliding front support arm installed on the linear guide, movable easy.
DA-69T CNC system
*3D and 2D graphical touch screen programming mode
*3D visualisation in simulation and production
*17" high resolution colour TFT
*Full Windows application suite
*Delem Modusys compatibility (module scalability and adaptivity)
*USB, peripheral interfacing
*User specific application support within the controllers multitasking environment
*Sensor bending & correction interface
Main configuration

Name	Producer
CNC controller	DA69T Delem Holland brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Grating ruler	GIVI Italy brand
Tubing connector	EMB Germany Brand
Main motor	Siemens Germany Brand

The standard accessories are in the below:
*Anchor bolt
*Hex nut
*Seal ring
*Gasket
*Grease gun
*Allen wrench
*Foot switch
*Front support arms
*Electrical box key, control panel key
*Operation manuals

---
