Heavy Duty Drum Sander Machine Horizontal Brush Wood Sanding Machine

US$7,000.00-10,000.00 3 set (MOQ)

Basic Info.

Model NO.
R-RP1300
Max Working Width
1300mm
Total Motor Power
63.37kw
Feeding Speed
6-30m/Min
Net Weight
4700kg
Transport Package
Strong Stretch Film
Specification
2700*2100*2100mm
Trademark
SOSN
Origin
China
HS Code
84609090
Production Capacity
600 Sets Per Month

Product Description

R-RP1300 heavy duty drum sander machine horizontal brush wood sanding machine
Advantage Features:
Safety Protection: Assure with good performance under safety working voltage.
Heavy-duty Frame: Cast steel girder, base and front plate, strengthen stability.
Speed control: Sanding belt rotational speed and feeding speed, to ensure working perfectly.
Easy replaced sanding belt.
Easy operation with control panel.
Dust collector: Air blowers and dust collector can wipe off the dust of the work pieces.
Applicable:
----suitable for sanding and polishing MDF,Veneer,Marble,Fireproof board,Galvanized metal sheet.
----with one head,two head,and three head three types.
----sanding width between 400mm to 2200mm.
Technical Parameter

Working width
450,630,1000,1300,1600mm
First motor
5.5, 11, 22, 37, 45kw
Min.Working length
500mm
Second motor
5.5, 7.5, 15, 22, 30kw
Working thickness
3-110mm
Third motor
11, 22kw
Feeding speed
6-30m/min
Feeding motor
0.75, 1.5, 4.5kw
First roller
190, 240mm
Lifting motor
0.37, 0.55kw
Second roller
190, 240mm
Working air
0.6Mpa
Third roller
210mm
Volume of dust
8000, 9600, 14000m³/h
Abrasive belt size
470*1930, 650*1930, 1020*2020, 1320*2220mm
Overall dimensions
1800*950*2000, 2700*2100*2100, 3000*2400*2100mm
Weight
1100, 2200, 3200, 5300, 6500kg

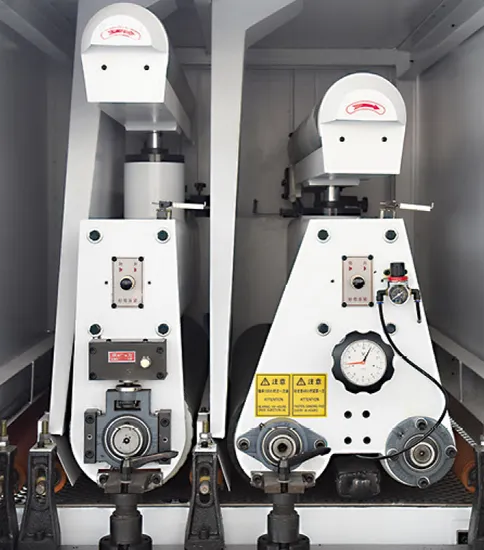

Products details:
