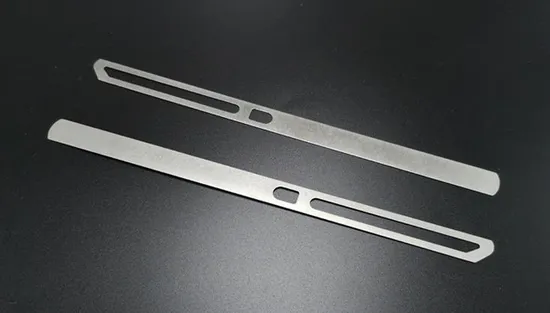

Drop Wire and Dropper for Weaving Machine

Product Description

Our company was established in 1960's, it has over 60 years' experience in the production of weaving parts, providing high-quality, reliable and a broad assortment of healds and drop wires. High-quality and innovative details of healds and drop wires are vital when it comes to the economy and productivity of a weaving machine. With Smooth accessories, you will have Rapid warp preparation, a high weft insertion rate, minimal production disruptions and flawless fabric quality.

Type	Length(mm)	Width(mm)	Thickness(mm)
O (open)	180/165/145/140/120	7/8/11/12	0.2/0.25/0.3/0.35/0.4/0.45/0.5/0.55/0.6
C (close)	180/165/145/140/120	7/8/11/12	0.2/0.25/0.3/0.35/0.4/0.45/0.5/0.55/0.6
Material	Stainless steel/ carton steel with nickel or zinc plated

These products are designed various kinds of shuttleless looms in cotton, wool silk, jute and synthetic-fibre weaving. They are made of stainless steel or electroplated carbon steel. There are two type of thread eye , EOU and EGU. The dropper has open type and close type .
Open type has EOU model,MOU model and MOR model,specification including 165x8x0.2/0.3/0.4, 180x11x0.2/0.3/0.4, 180x7x0.2/0.3/0.4, 145x7x0.2, 140x7x0.2, 156x11x0.2/0.3/0.4, 146x11x0.2/0.3/0.4. length can be 145,165,180. etc.
Close type has EGU model, EOU model, MGU model, MGR model,EGR model,specification including 165x11x0.2/0.3/0.4, 145x11x0.2/0.3, 120x11x0.2/0.3/0.4, 120x9x0.12/0.2, 150x11x0.2, 146x11x0.4, 90x11x0.2/0.3, 80x11x0.2, 60x11x0.2, etc.
A full range specifications is a vailable, the series are up to standards customers may choose according to their requirements.

---
