Lbj-1300 Portable Horizontal Bandsaw Sawmill Wood Logs Timber Cutting Machine Wood Sawmill Machine Price

Product Description

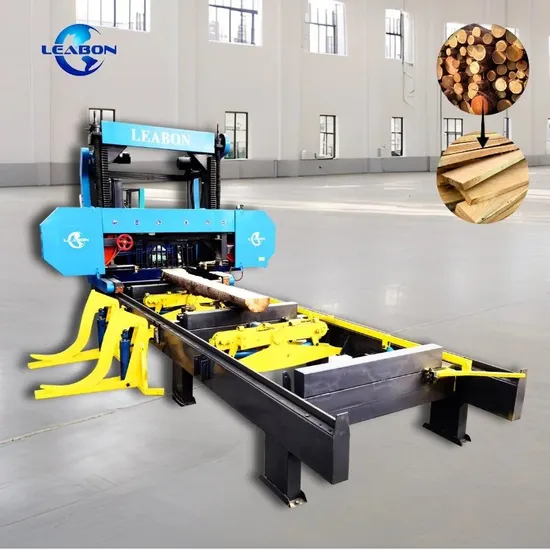

LBJ-1600 Portable Horizontal Band Sawmill Wood Logs Timber Cutting Machine Wood Sawmill Machine Price
Product Parameters
Hot Selling America Use Automatic Hydraulic Wood Sawmills
Combined with hydraulic automation technology, the hydraulic horizontal band sawmill realizes all-digital intelligent control. Chinese and English operating system, automatic wood rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate.
Configure of AUtomatic Hydraulic Portable Sawmill
Touch screen sizing, variable frequency speed adjustable forward,backward. Hydraulic chain rotation. Hydraulic rotation clamping. Hydraulic wood clamp. Hydraulic log stop pole. Board automatic return hook. Hydraulic plank roller axle. Hydraulic log loading arm.
SPECIFICATIN OF HORIZONTAL WOOD SAWMILL MACHINE PRICE

Model	LBJ-1000A	LBJ-700A
Max sawing wood diameter	1000mm	700mm
Saw wheel diameter	700mm	700mm
Max sawing wood thickness	300mm	300mm
Max sawing wood length	4500mm	4500mm
Main Power	22KW (3Phase/3380V/50HZ)	18.5KW
Hydraulic Power	4KW(3Phase/3380V/50HZ)	3KW
Band saw blade width	40-80MM	40-80MM
Machine length	6000MM	6000MM
Weight	3500KG	3000KG

Related Product:
Hot Selling Portable Horizontal Wood Sawmill
- APPLICATION RANGE:
1). Portable Horizontal Band sawmill is to meet the requirements of customers in Africa and South America.
2). It is simple installation, easy operation, labor saving and high productivity.
3). This machine can be drove by either electric motor or diesel engine
4). It is widely used by the timber process enterprises in the virgin forests area.
Technical parameter of wood sawmill machine price

Model	LBJ-700E	LBJ-1000E	LBJ-1300E	LBJ-1600E
Max. Sawing Wood Diameter	700MM	1000MM	1300MM	1600MM
Saw Wheel Diameter	600MM	700MM	700MM	700MM
Sawing Wood Thickness	260MM	300MM	300MM	300MM
Sawing Wood Length	4500MM
Power	15KW/22HP	18.5KW/22HP	22KW/25HP	30KW/27HP
Up/Down Motor	1.1KW
Total Weight (KG)	900	1100	1300	1500

Disel Engine Type Portable Sawmills
Electric Motor Type Portable Sawmill
Hot Selling Complete Wood/Logs Cutting Line
Introduction of double vertical type saw
1.This twin vertical sawmill is a special equipment for processing wood logs, it can cuts the round wood log into square wood.
2. Easy installation and operation, large output.
3. It is suitable for cutting logs and used in the production of furniture.
4. Machines with different sizes meet the requirements of different customers and are often used in Africa, South America and other regions.
Technical Parameter of Vertical Wood Sawmill:

Model	LBLS-350	LBLS-500
Max sawing wood diameter	350mm	500mm
Min Sawing Wood Diameter	100mm	100mm
Sawing Wood Length	1000-3000mm	1000-3000mm
Feeding Speed	9-25Meters/Minute	9-25Meters/Minute
Conveyor Length	7000mm	3500*2mm
Saw Wheel Diameter	700mm	760mm
Saw wheel diameter	50-80mm	50-100mm
Motor	2*18.5KW	2*22KW
Feeding Motor	5.5KW	4KW*2
Sizing Control	Touch Screen	Touch Screen

2.Hot Selling Multi Blade Rip Saw Wood Machine

Parameter	LBMS 120-250	LBMS 160-250	LBMS200-250	LBMS160-350
Max. sawing wood plate width	250mm	250mm	250mm	350mm
Max. sawing wood plate thickness	120mm	160mm	200mm	160mm
Sawing wood plate length	More than 500mm	More than 500mm	More than 500mm	More than 600mm
Speed of main shaft	2800 r/min	2800 r/min	2800 r/min	2800 r/min
Main motor power	15KW*2	18.5KW*2	22KW*2	30KW*2
Feeding motor power	1.5KW	1.5KW	2.2KW	2.2KW
saw blade diameter	212mm	255mm	305mm	255mm
saw blade quantity	2-10pieces	2-10pieces	2-10pieces	2-10pieces
saw blade arrangement	Two group of blades	Two group of blades	Two group of blades	Two group of blades
Feeding speed	Frequency control	Frequency control	Frequency control	Frequency control
Cooling water pressure	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA
Cooling method	Axial water	Axial water	Axial water	Axial water

3. Final Cutting Wood Planks :

FAQ
When palacing the order for sawmill machinery price, pls make sure the following:
1. What's your raw material for processing ? Roung Logs or Square wood plank?
2. What's the size of your raw material? (Round wood: diameter and length; Square wood plank: width and length)
3. What's the size of final wood board you want to cutting ?(Length*Width*Thickness)
4. How many CBM wood/wood planks you want to processing per day?
5. What's the usage of final wood board product? Buyer recommend products

Multiple Heads Horizontal Band Saw

Single Spindle Multiple Blade Rip Saw

Wood Plate multi-blade saw

Edge Cleaning Cutting saw

Round Log Multiple Sawmill

Horizontal Band Sawmill Machine

Pls click "SEND" ask for more Catalog and EXW Price

---
